Common applications of coaxial cable include video and CATV distribution, RF and microwave transmission,and computer and instrumentation data connections.
RG402 Coaxial cable is generally used as a transmission line for radio frequency signals.Its applications Include feedlines connecting radio transmitters and receivers with their antennas,computer network (Internet) connections,digital audio (S/PDIF),and distributing cable television signals.
| Electrical | |
| Frequency Range | DC to 6GHz |

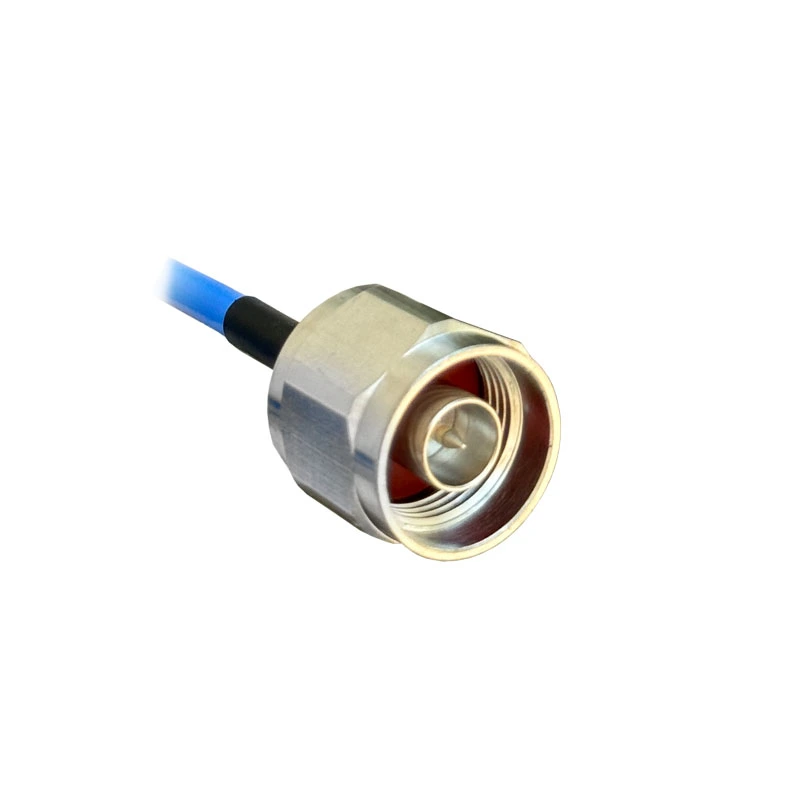

| Connector 1 | Standard N Male Straight |
| Connector 2 | Standard SMA Male Straight |
| Plating | N:NickGoldplated |
| RF Cable Type | RG402 |
| Cable length | 100mm(According to customer customize) |
| Impedance | 50ohms |
| VSWR | 1.5:1 |
| Rated Voltage | AC 60V |
| Contact Resistance | 20m ohm max-signal and ground |
| Withstand Voltage | AC 200V |
| Insulation Resistance | 500M ohm minimum/DC 100V |
| RoHs | YES |
| Temperature | -40℃ to +85℃ |
