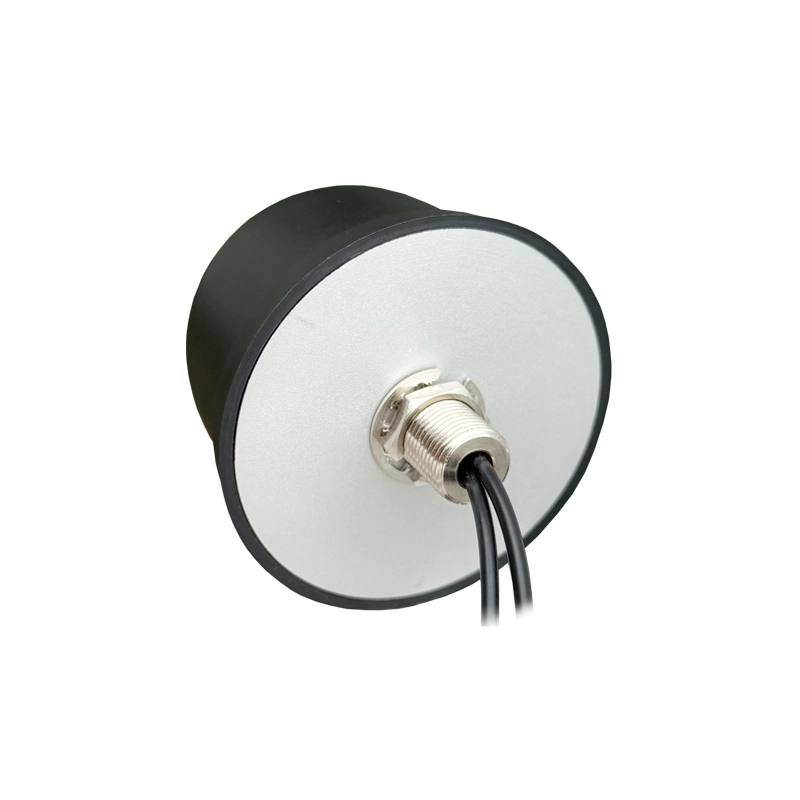

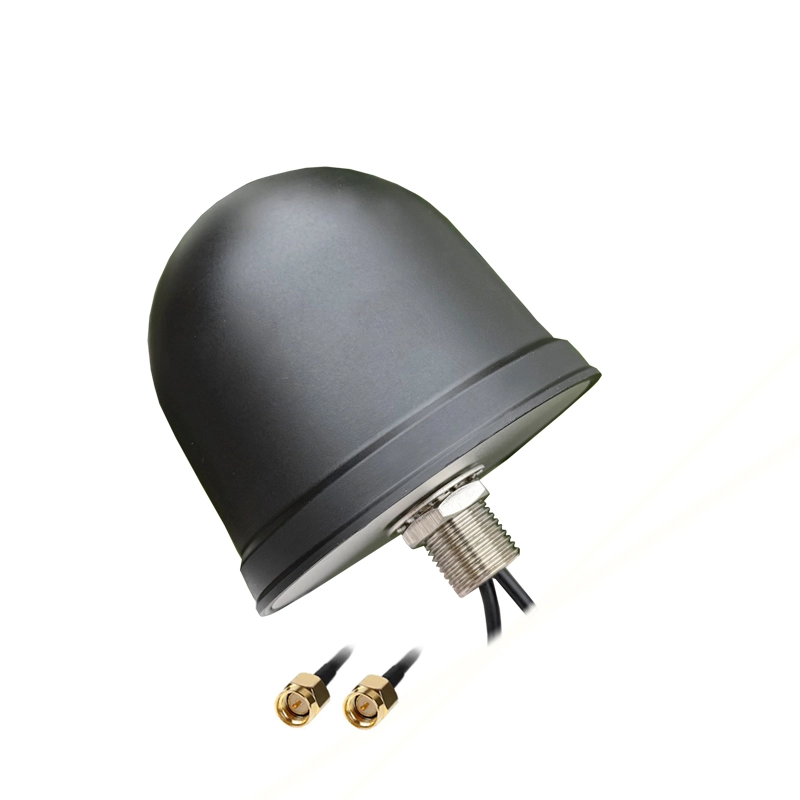

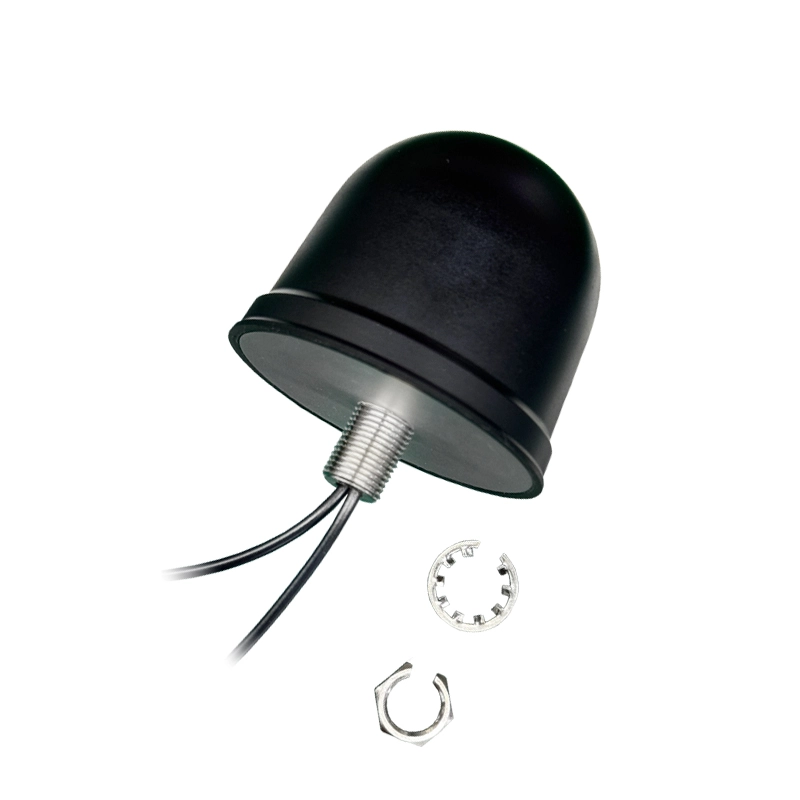

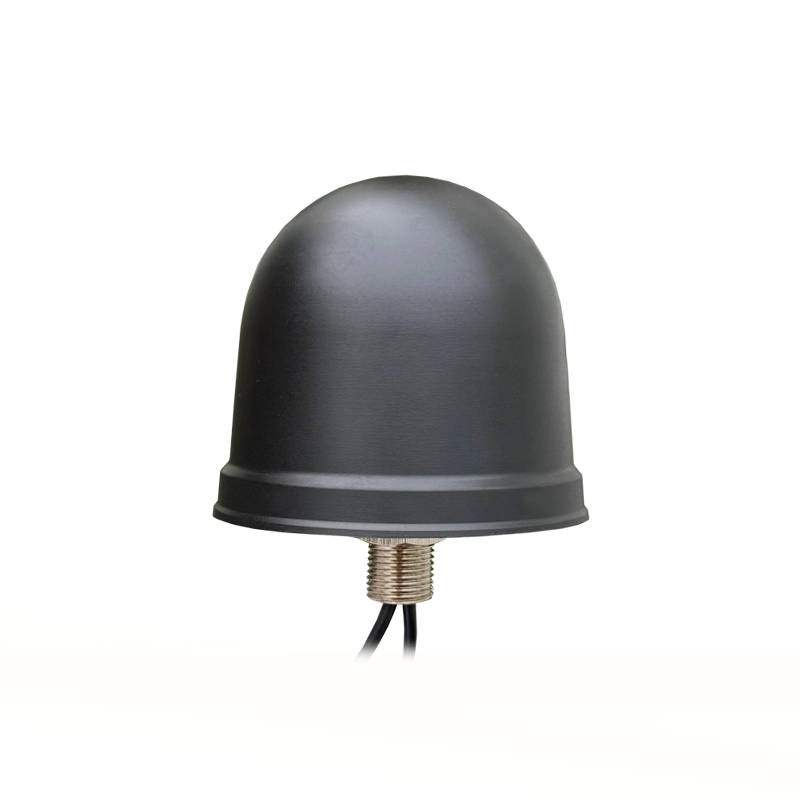

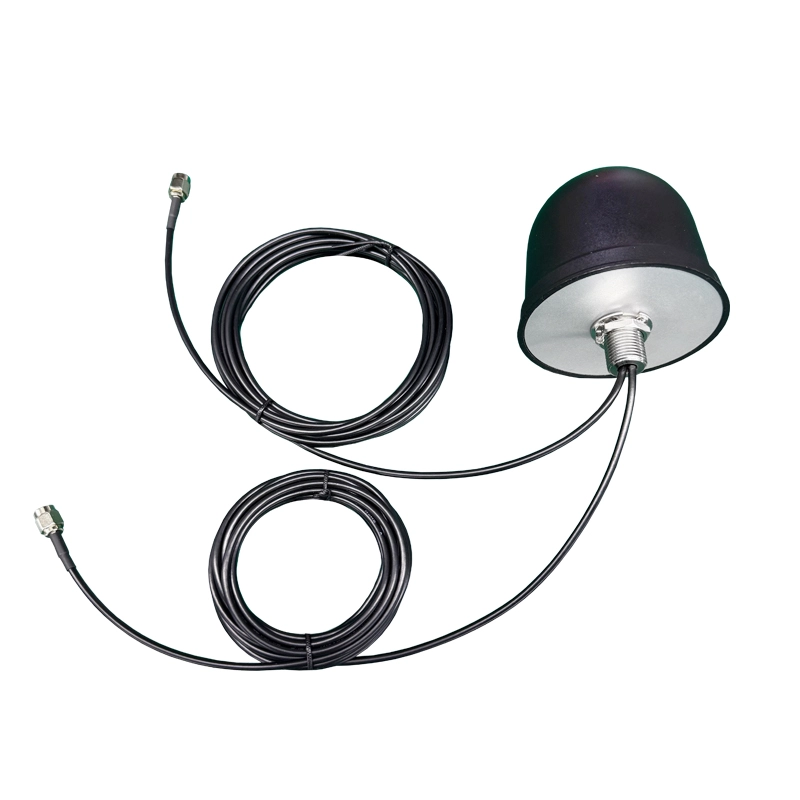

This 2-in-1 screw mount IoT antenna supports 4G/LTE and Wi-Fi/BT connectivity. This is designed to work with various GND plane sizes or in free space for ease of integration with connection via two cables, terminated with SMA connectors. It comes with durable IP67 rated ABS casing which provides maximum durability.It is compatible with 2G, 3G, NB-IoT,LTE and Wi-Fi/BT modules. Covering 698 MHz – 2700 MHz,this antenna ensures high performance, reliability, and precision for demanding applications with high data throughput.
| Electrical | |
| Frequency Range | 2x698-960/1710-2700MHz |
| Gain | 3/5dBi |
| V.S.W.R | ≤2.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | 2xSMA Male |
| Cable Type | RG174 |
| Cable Length | 2x3M |
| Antenna Radome Material | ABS |
| Mount way | Screw |
| Mechanical | |
| Dimensions | Φ75x67mm |
| Weight | 159g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
