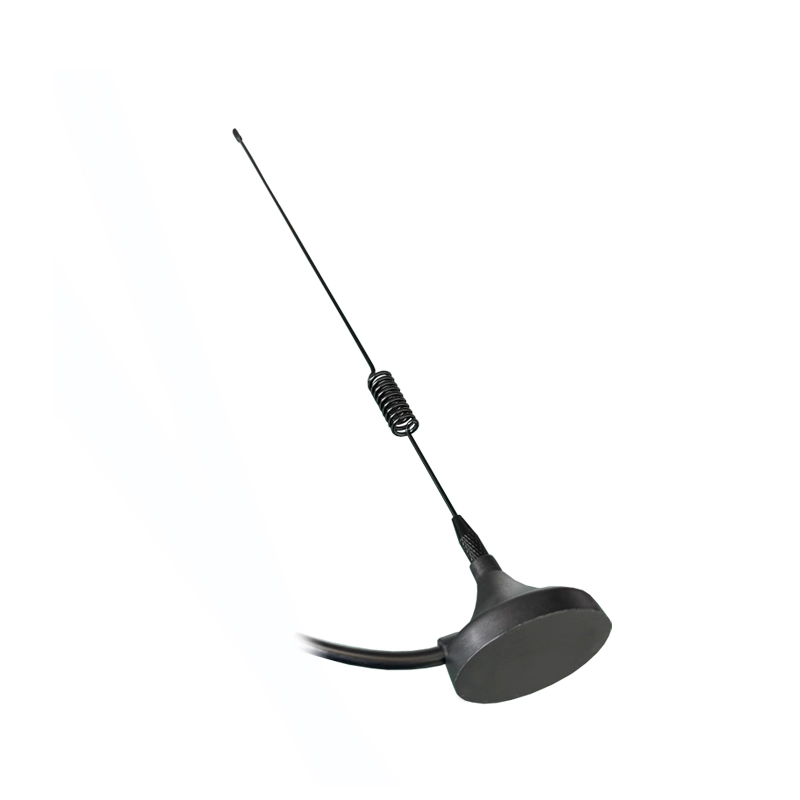

5dBi high gain omni-directional spring antenna ,whip is manufactured from premium steel quality, and base is anti-corrosive ABS plastic material.Compact in design and has a flexible springy magnetic base which can be placed easily in any vertical or horizontal metal surfaces.
Omni-directional antenna operates under the wide frequency spectrum range of 698-2700MHz and receives maximum signal for better network connectivity. LTE spring antenna provides high gain of 5dBi in all the dead spot regions of that building.

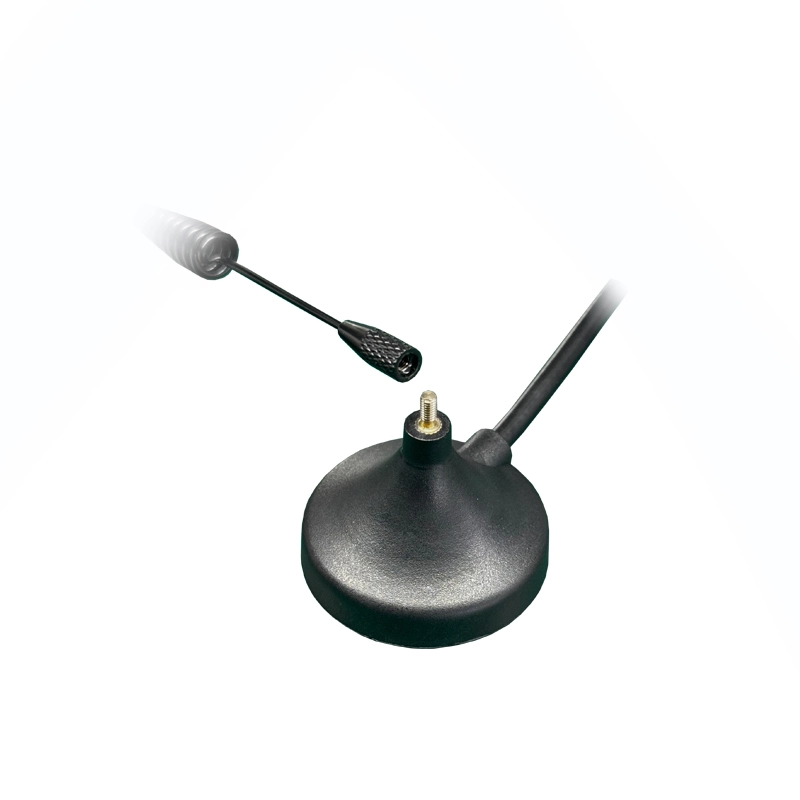

Spring magnetic base antenna features RG174 extension cable with SMA male
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 5dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable Type | RG58U |
| Cable Length | 3M |
| Antenna Radome Material | Steel wire |
| Mounting way | Magnetic |
| Mechanical | |
| Dimensions | Φ45x295mm |
| Weight | 145g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
