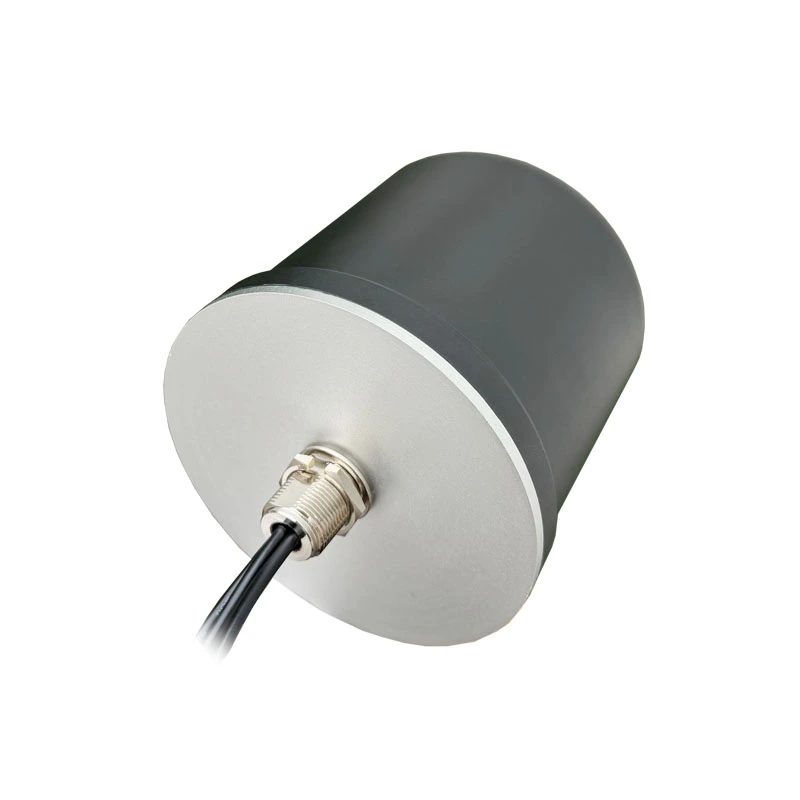

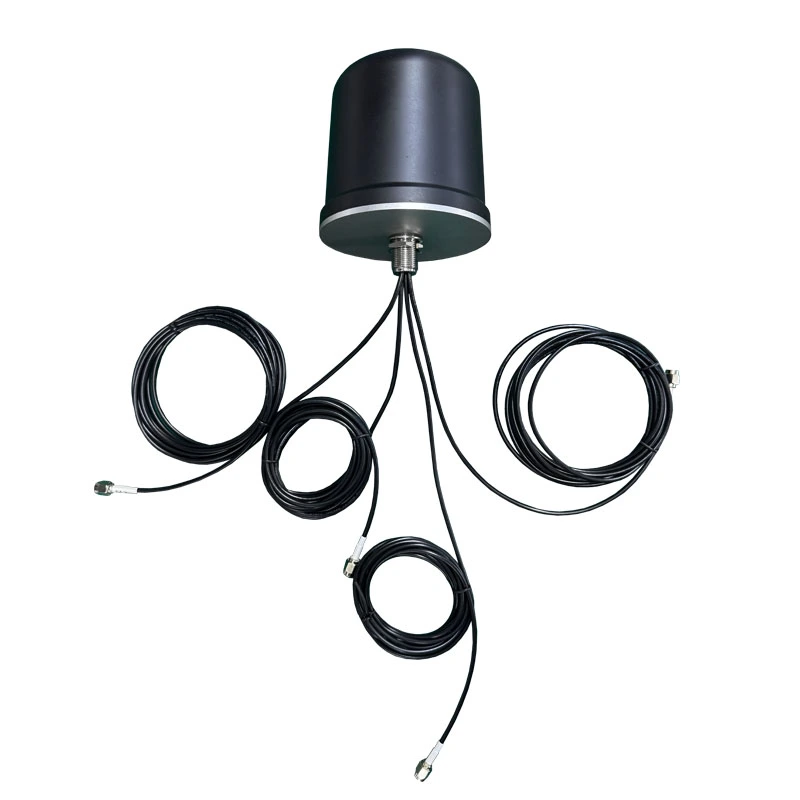

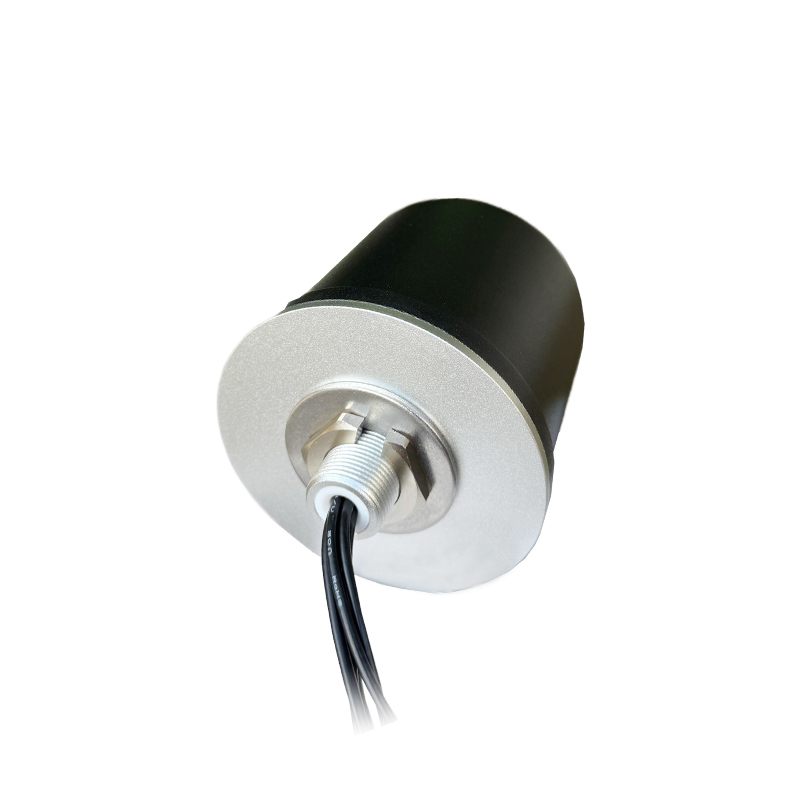

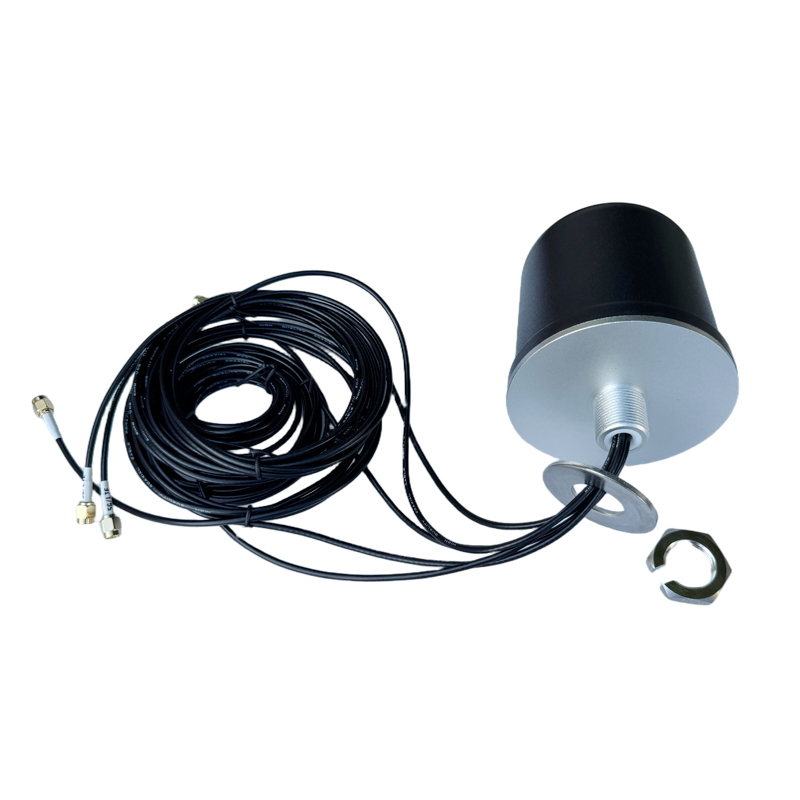

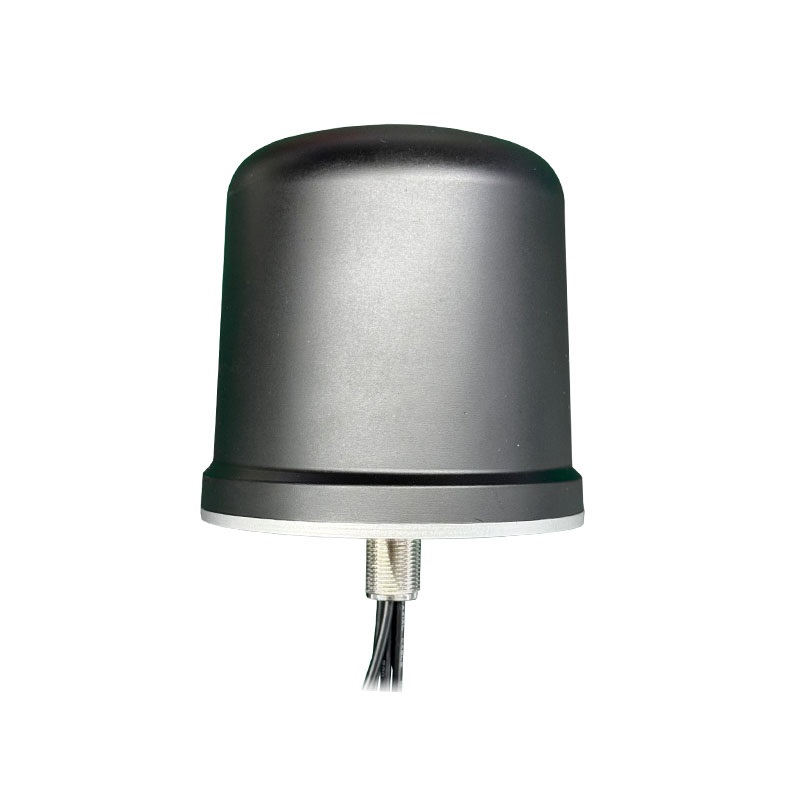

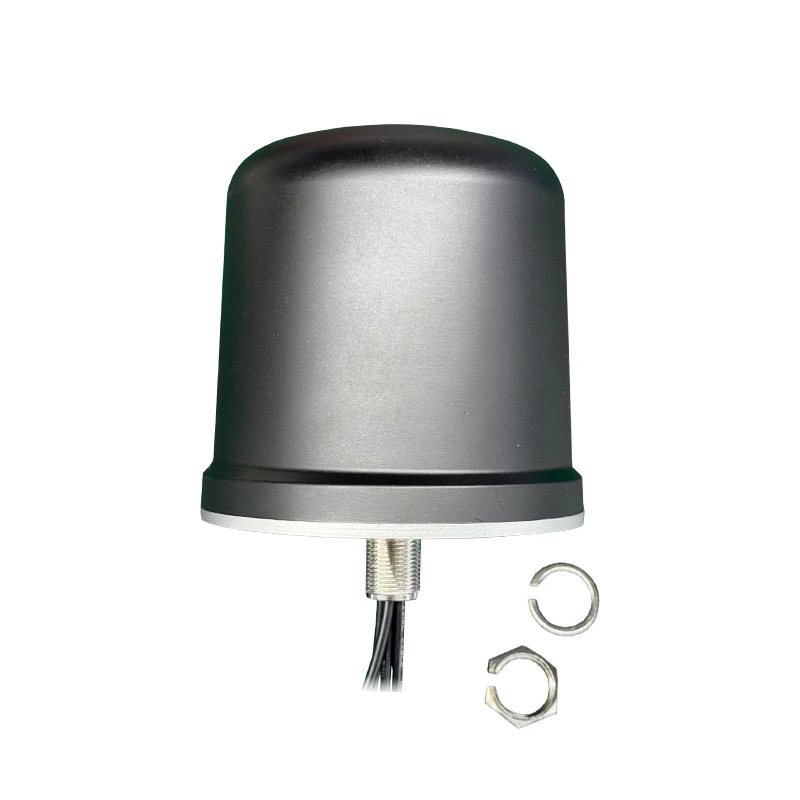

This 5G Screw Mount 4-in-1 Combo Antenna Box is an ultra-wide-band 5G/4G antenna box with broad coverage from 600MHz to 6000MHz.It is also backward-compatible to support 3G/2G networks, Cat M, and NB-IoT. It is an omnidirectional heavy-duty,fully IP67 waterproof external M2M antenna for use in telematics, transportation, and remote monitoring applications.Screw Mount design let this 4-in-1 Combo Antenna to work with various GND plane sizes or in free space for ease of integration with connection via five cables of customizable length between 300m to 5000mm and terminated with SMA connectors. This screw-mount omnidirectional IoT antenna is easily installed with maximum durability with its IP67 enclosure.
The antenna is available in either surface-mount or magnetic-mount models.
| Electrical | ||
| 5GLTE Part: | Frequency range | 617-960/1427-2690/3300-5000/ 5150-6000MHzX4 |
| V.S.W.R | 617-960<2.5;1427-6000<1.5 | |
| Gain | 3/5dBi | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| Mechanical | ||
| Housing | Black | |
| Cable | 4xRG174 | |
| Length | 4x3/5M or can be customization | |
| Connector | 4xSMA Male or can be customization | |
| Environmental | ||
| Working Temp | -40℃~+85℃ | |
| Humidity | 95%~100%RH | |
| Waterproof | IP67 | |
| Antenna Radome Material | ABS | |
| Mounting way | Screw | |
| Antenna Dimension | Φ96x102mm | |
| Weight | 340g | |
| RoHS Compliant | YES |
