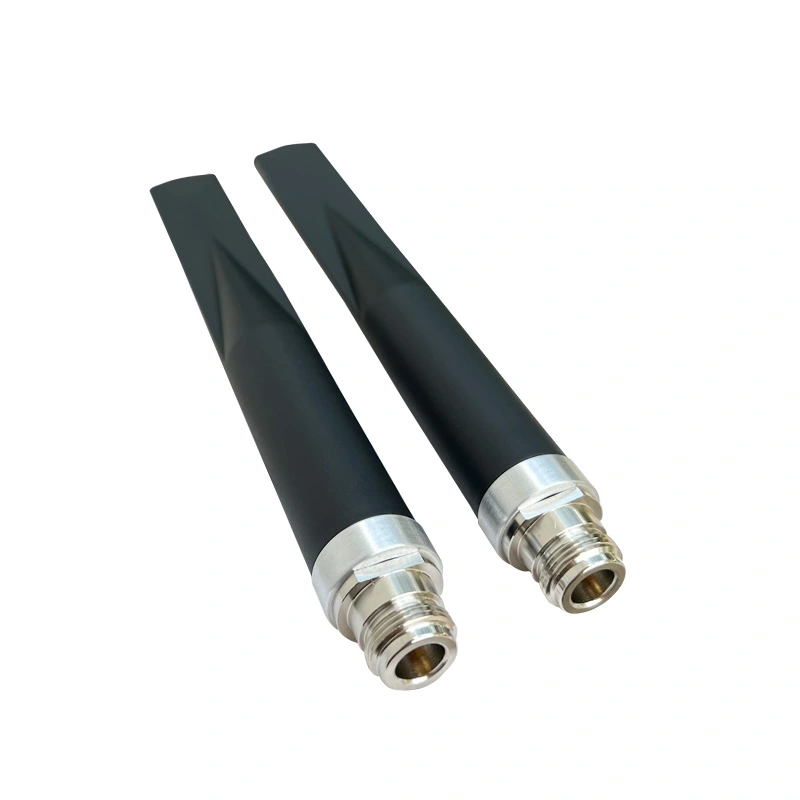

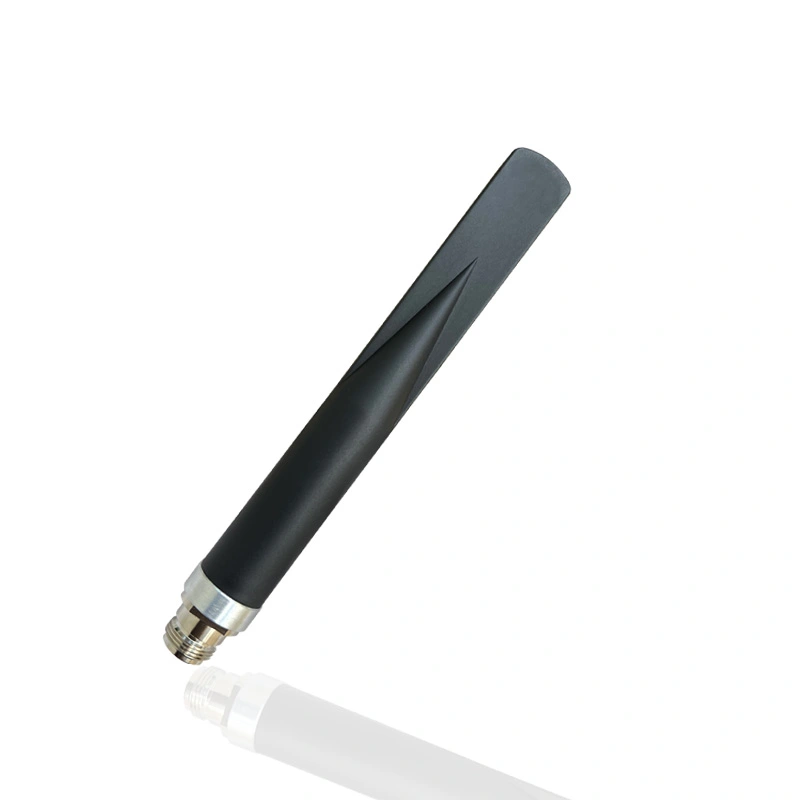

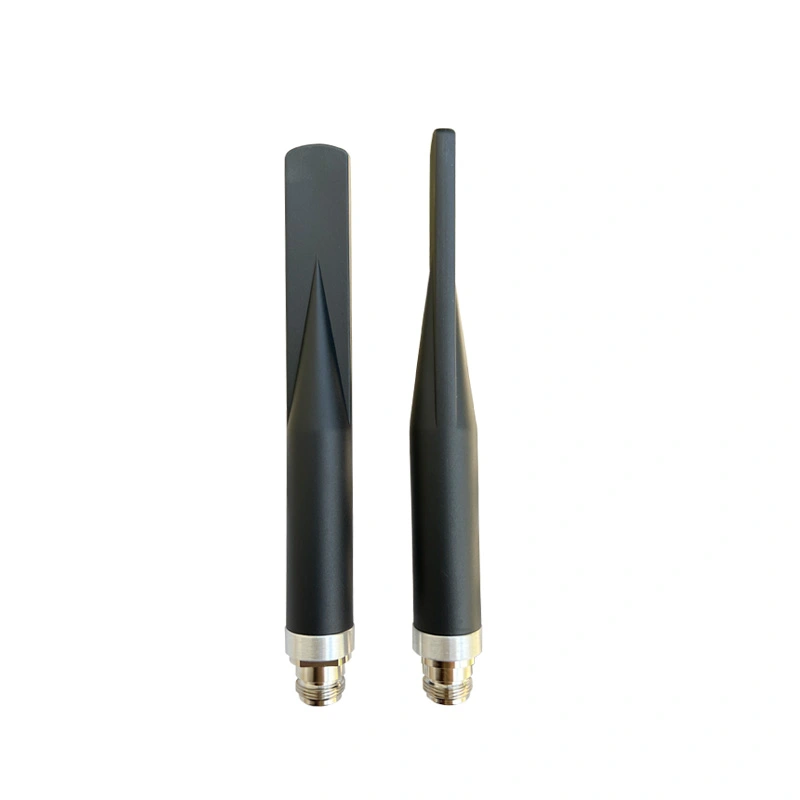

This is a dual band 2.4/5.8G dipole antenna that has been designed to cover all sub GSM,UMTS,Cellular, ISM and WIFI with frequencies in the 2400 to 5850MHz spectrum.
The 2.4G/5.8G whip antenna is vertically polarized with an omnidirectional radiation pattern.This antenna does not need to be connected to the ground-plane of a device to radiate efficiently and neither is it in
any way detuned by connecting to a ground-plane.It has a quality TPE housing ,linear polarized can be made very small and light weight,especially useful for weight-critical application .
| Electrical | |
| Frequency Range | 2400-2483/5150-5850MHz |
| Gain | 3/5dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | TPE |
| Mechanical | |
| Dimensions | Φ22x177mm |
| Weight | 53g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
Cover WIFI6 frequencies in the 2400-2483/5150-5850MHz
2.4/5.8G WIFI6 dipole antenna
Vertically polarized with an omnidirectional radiation pattern
