Networks Directional and multipoint applications superior Performance Good appearance designs
Outdoor antenna for public Hot spots Installed for vertical or horizontal polarization Heavy Duty mounting.
The Weight is light high gain and good sector pattern, petals small, vertical direction Angle is easy to control, reliable sealing performance and long service life.
High Gain H or V Polarization, Full day for working Durable, corrosion resistance Optimized dimension.
| Electrical | |
| Frequency Range | 5725-5850MHz |
| F/B Ratio | ≥25 dB |
| Gain | 15 dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 120° |
| Vertical Beam width | 8° |
| Polarization | Verticalor or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | ABS |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 420x135x35mm |
| Weight | 950g |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
Click to see 5.8 GHz Sector Antenna list.

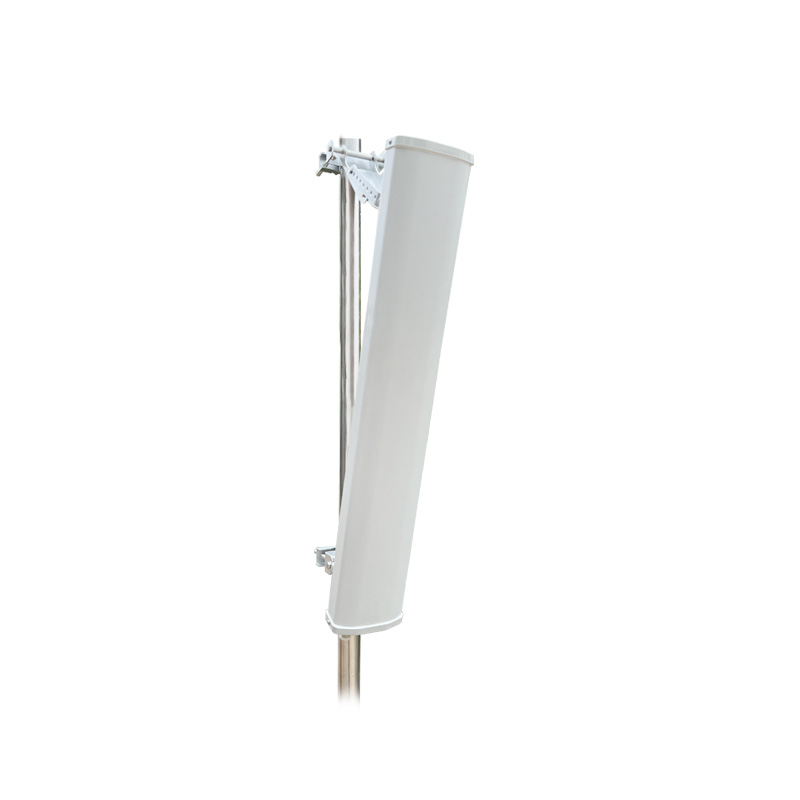

This WLAN Sector Base Station Antenna is a Single Polarization antenna 5.8 GHz sector antenna 15dBi high-gain antenna for outdoor applications.
This sector antenna can be use for WLAN Point-to-Point Back Haul MIMO Radio Links application.
This antenna is an ideal choice for Wireless Internet Provider "cell" sites since the cell size can be easily determined by adjusting the down-tilt angle.
