Flexible Printed Circuit antenna is a type of antenna that is printed on a flexible substrate, such as a plastic film or a polyimide film.
FPC antennas are designed to transmit and receive electromagnetic waves in specific frequency bands, similar to PCB antennas. Flexible FPC antennas can be bent, folded, or twisted, making them suitable for devices that require flexibility, such as wearable devices.
Compact FPC antennas are thin and lightweight, making them suitable for devices with limited space.
Good Performance FPC antennas can achieve good performance in terms of gain, efficiency, and radiation pattern, especially when designed and optimized for a specific frequency band.
| Electrical | |
| Frequency Range | 478-482MHz |
| Band width | 4MHz |
| Gain | 2.5dBi |
| V.S.W.R | ≤1.5 |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | IPEX |
| Cable Type | 1.13cable |
| Cable Length | 10cm |
| Antenna Radome Material | FPC |
| Mount way | Adhesive |
| Mechanical | |
| Dimensions | 14x55x0.2mm |
| Weight | 1g |
| Operating Temperature | -40℃ to+70℃ |
| Humidity | +15-70%RH |
| RoHS Compliant | YES |

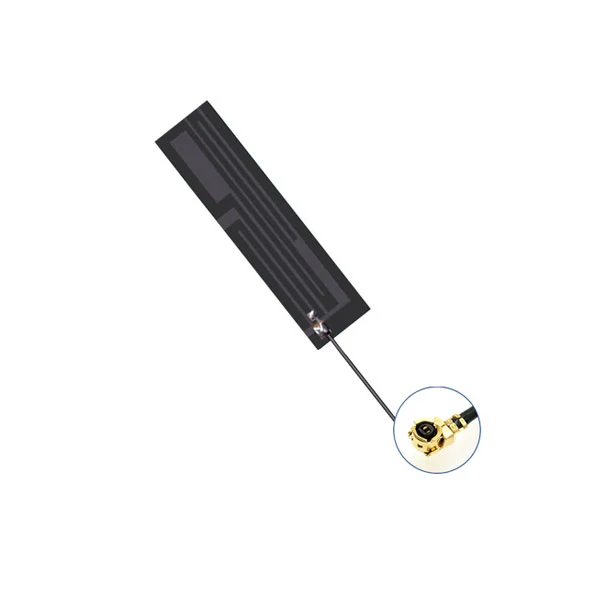

Antenna With flexible printed circuit board type peel-and-stick technology.
These antennas are specifically designed to be embedded inside devices by adhering the antenna to a device housing.
The antenna are with aesthetically pleasing integration and reliable performance.
