This type wall mount omni-directional antenna is Compact and light weight with Vertical Polarization that in 2400-2483MHz frequency.
Use them with the communication equipment and an antenna tracker to increase range and Received Signal Strength Indication. Also works great for telemetry receivers.
The antenna is ideal for both indoor and outdoor applications.
Being Bracket mount it is designed to be mounted on a ground plane for optimal performance.
Cable and Connector can be Customed.
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| Gain | 5dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable Type | RG174 |
| Cable Length | 30cm |
| Antenna Radome Material | TPE |
| Mounting way | Wall Mount |
| Mechanical | |
| Antenna Dimension | Φ14x205mm |
| Weight | 30g |
| Impedance | -40℃ to+70℃ |
| RoHS Compliant | YES |

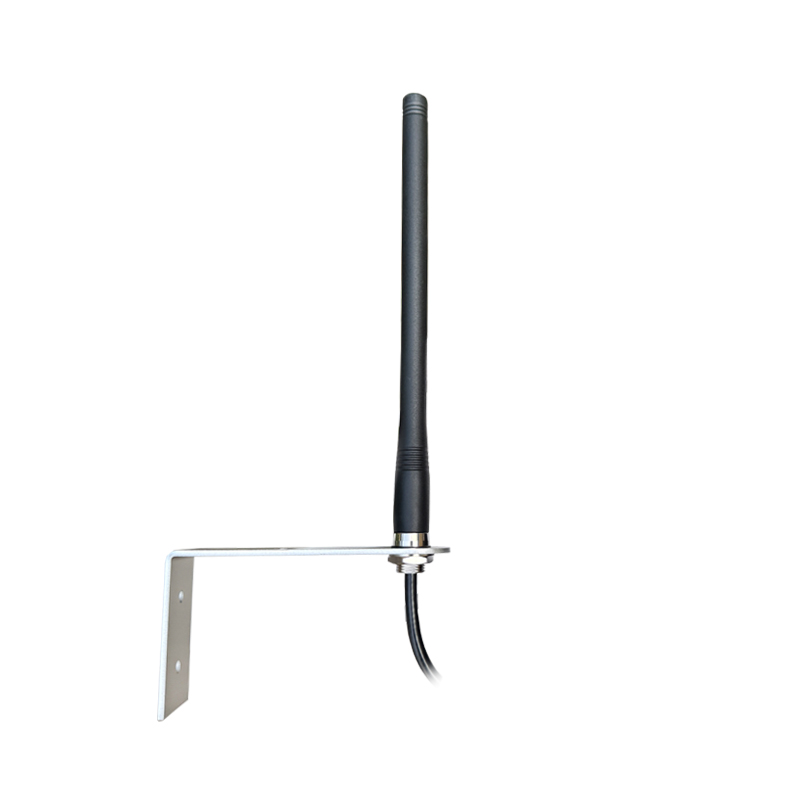

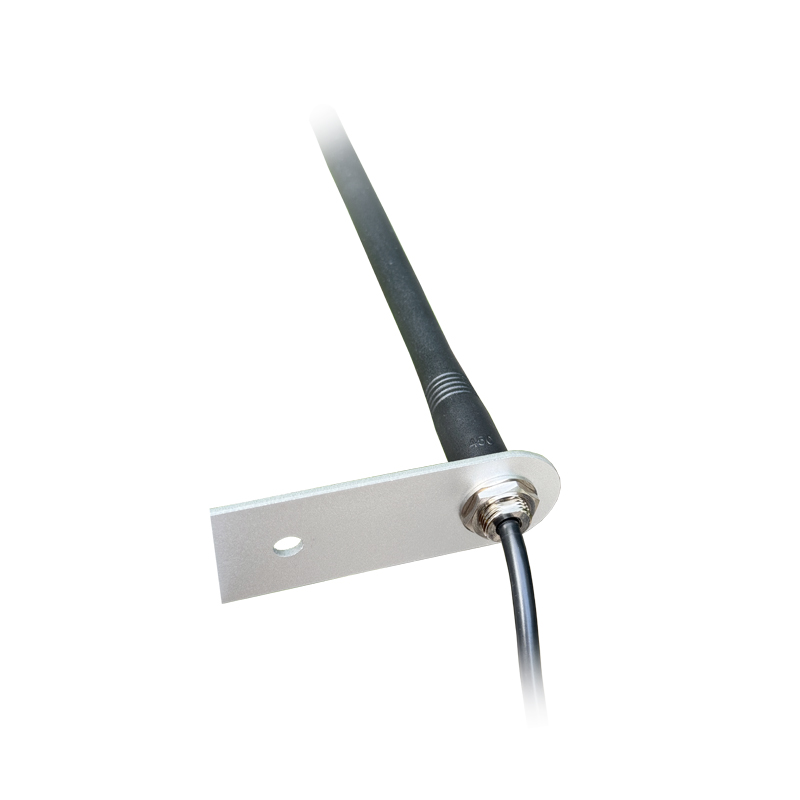

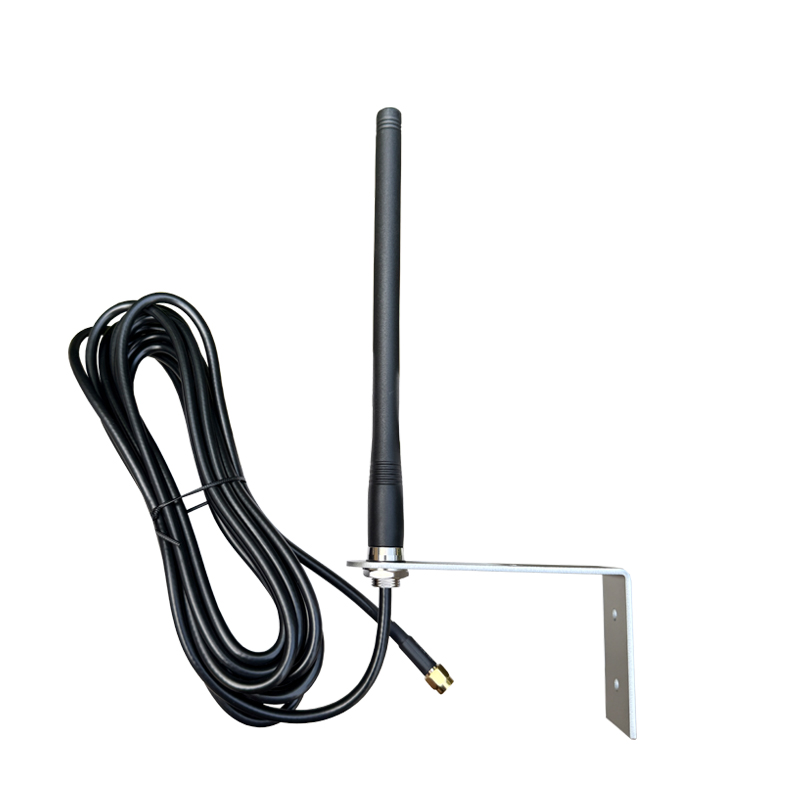

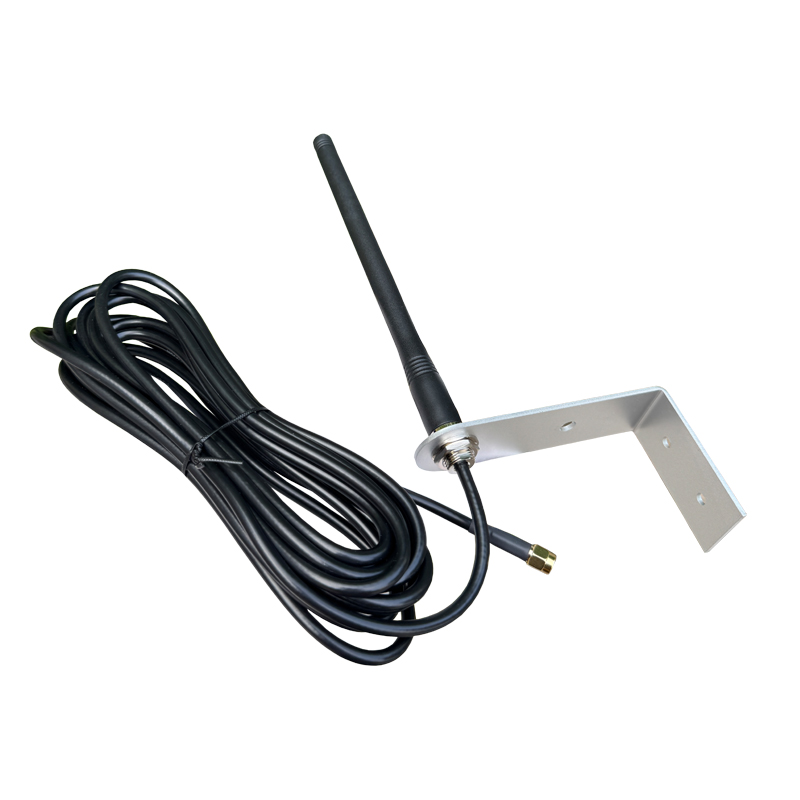

The antenna comes with a aluminium alloy bracket, rubber antenna whip, 300 cm long RG58 cable and SMA-Male connector for a secure and durable outdoor installation.
This type wall mount antenna compatible with ATM machines Vending machines and Electrical metering application.
Using this Wall mounting antenna will give optimum range and reliability to your application.
