The 5 in 1 GPS/LTE/WIFI antenna is a low profile,heavyduty, waterproof reach IP67.
It use by RF professionals in telematics，transportation and remote monitoring applications.
It combines the highest possible efficiency and peak gain in GPS/2G/3G/4G in a low profile compact format for mounting via high quality first tier .
For installation combines 3M adhesive foam,screw mount together.
The antenna can be mounted on the roof of a vehicle or fixed structure.
The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.
The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance.

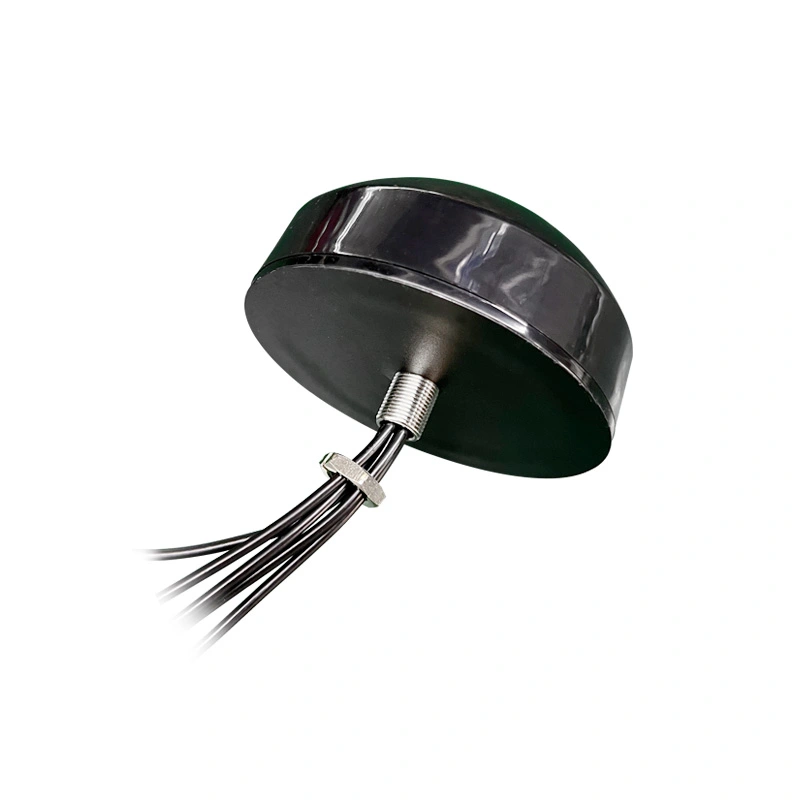

_Antennas.webp "5")

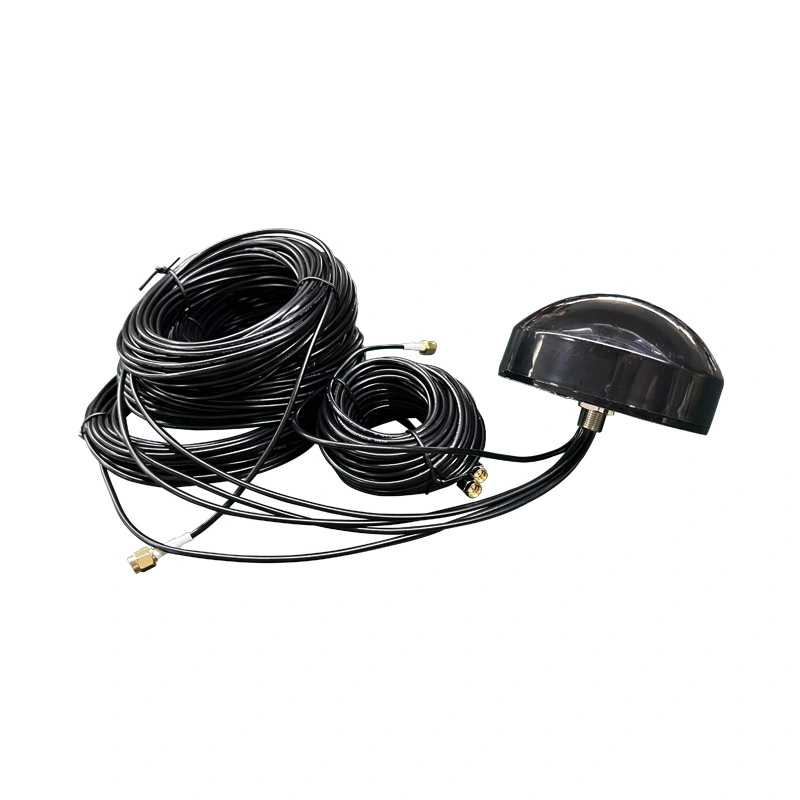

_Antennas.webp "5")

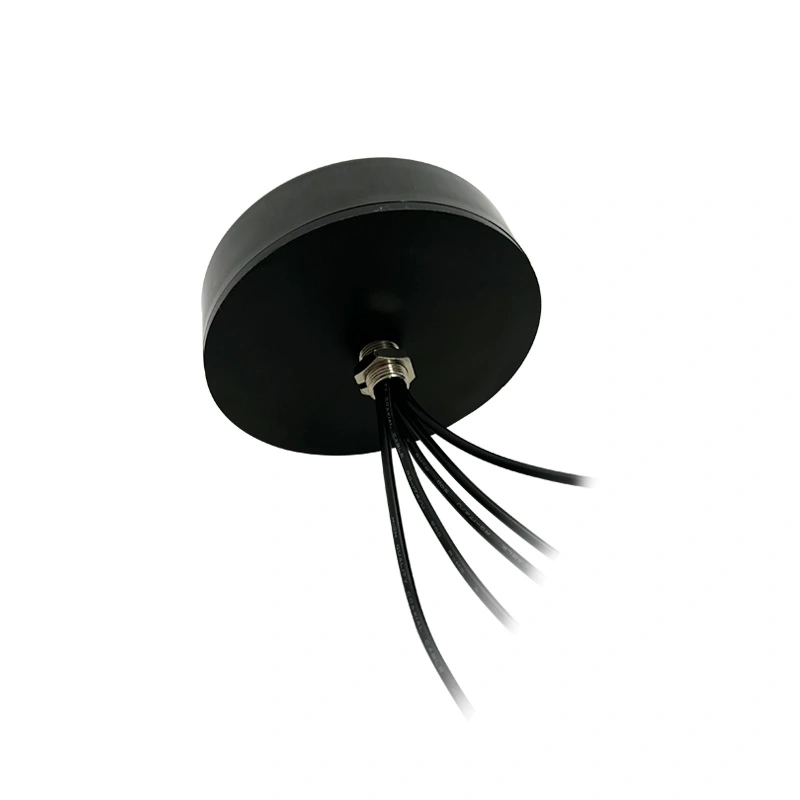

_Antennas_with_Cables.webp "5")

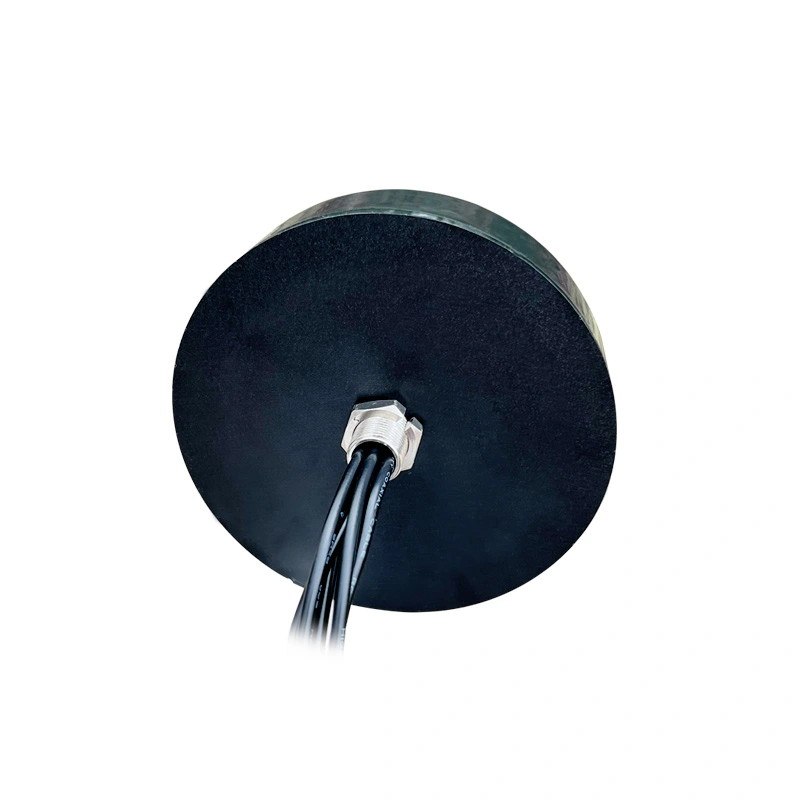

_Antennas_Screw_Mount.webp "5")
_Antennas.webp "Black")
| Electrical | ||
| GPS Part: | Dielectric Antenna | |
| Frequency Range | 1575.42MHZ±3 MHz/1602-1610MHz | |
| Polarization Type | RHCP | |
| Gain | 5dBi | |
| V.S.W.R | <2.0 | |
| Impedance | 50Ώ | |
| LNA | ||
| LNA Gain | 28±2dB Typical | |
| Noise Figure | 1.5dB | |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
| V.S.W.R | ＜2.0 | |
| Voltage | 2.7/3.0/3.3/5.0/3.0 to 5.0 etc. | |
| Current Consumption(mA) | 11 Max | |
| Impedance | 50Ώ | |
| DC current | 5-15mA | |
| LTE Part: | Frequency range | 698-960/1710-2700MHZ*2 |
| VSWR | 2.0:1 | |
| Gain | 3dBi*2 | |
| Polarization | Linear | |
| Impedance | 50Ω | |
| WIFI Part: | Frequency range | 2.4/5GHZ*2 |
| V.S.W.R | 2.5 | |
| Gain | 3dBi*2 | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| Mechanical | ||
| Housing | White | |
| Cable | RG174×5 | |
| Length | 3M×5 | |
| Connector | SMA male×5 | |
| Environmental | ||
| Operation Temperature | -40℃~+85℃ | |
| Humidity | 65%-95%RH | |
| Waterproof | IP67 | |
| Antenna Radome Material | ABS | |
| Mounting way | Screw Mount | |
| Antenna Dimension | Ф95×50mm | |
| Weight | 300g | |
| RoHS Compliant | YES | |
5 in 1 GPS/LTE/WIFI low profile,heavyduty, waterproof IP67 antenna
It combines the highest possible efficiency and peak gain in GPS/2G/3G/4G
The antenna has its own ground-plane and can mounting on the metal or plastic
