These low-profile omni-directional antennas offer great value for OEMs, VARs and Systems Integrators looking for multiband coverage, performance reliability and an attractive "consumer oriented" housing at an affordable price, Ideal applications include in-building public safety, retail establishments, enterprise networks. public "hot spots" and facilities management.
The antennas come in a variety of mounting options, including SMA type, N type connector options.
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| Gain | 5dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | RG58U |
| Cable Length | 30cm |
| Antenna Radome Material | ABS |
| Mounting way | Ceiling Mount |
| Mechanical | |
| Antenna Dimension | Φ170x85mm |
| Weight | 250g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |

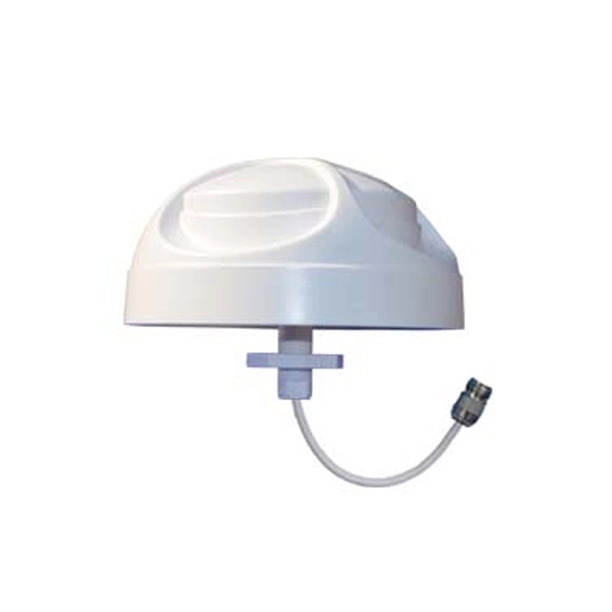

This ceiling mount antenna has attractive low profile appearance.
Antenna with 360° coverage in the horizontal plane and 3dbi gain.
The antenna use with dual band cellular and WiFi frequencies.
