The GPS/GSM combo antennas have been designed to provide maximum performance and versatility for telematics applications, including fleet monitoring and asset tracking.
The antennas precise performance and easy of installation provides outstanding value and flexibility for the most demanding wireless mobile applications.
Magnetic mount, and permanent adhesive mount will be choose.
It is good use to put it on top of the car, and then take it for travel.
| Electrical | ||
| GPS Part: | Dielectric Antenna | |
| Frequency Range | 1575.42MHz±3 MHz | |
| Polarization Type | RHCP | |
| Gain | 2dBi | |
| V.S.W.R | <1.5 | |
| Impedance | 50Ώ | |
| LNA | ||
| LNA Gain | 28±2dB Typical | |
| Noise Figure | 1.5dB | |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
| V.S.W.R | ＜2.0 | |
| Voltage | 2.7/3.0/3.3/5.0/3.0 to 5.0 etc. | |
| Current Consumption(mA) | 11 Max | |
| GSM Part: | Frequency range | 824-960/1710-2170MHz |
| V.S.W.R | 2.0:1 | |
| Gain | ＜2.0 | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| WIFI Part: | Frequency range | 2400-2500MHz |
| V.S.W.R | ＜2.0 | |
| Gain | 3dBi | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| Mechanical | ||
| Housing | Black | |
| Cable | 3xRG174 | |
| Length | 3x3/5M or can be customization | |
| Connector | 3xSMA Male or can be customization | |
| Environmental | ||
| Working Temp | -40℃~+80'℃ | |
| Humidity | 55%-75%RH | |
| Waterproof | IP66 | |
| Antenna Radome Material | ABS | |
| Mounting way | Screw Mount | |
| Antenna Dimension | 170x37mm | |
| Weight | 260g | |
| RoHS Compliant | YES | |

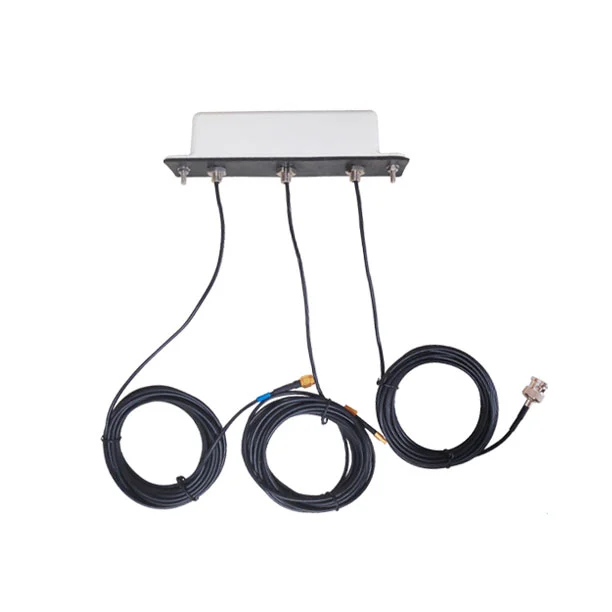

The Cellular/GSM, GPS and WIFI Screw Mount is a 3-in-1, high-performance antenna that maximizes versatile usability without compromising efficiency.
This 3 in 1 combination antenna can be use for Electrical and environmental monitoring application.
There are two mounting holes located outside the antenna for easy installation onto platforms with tight size and weight budgets.
