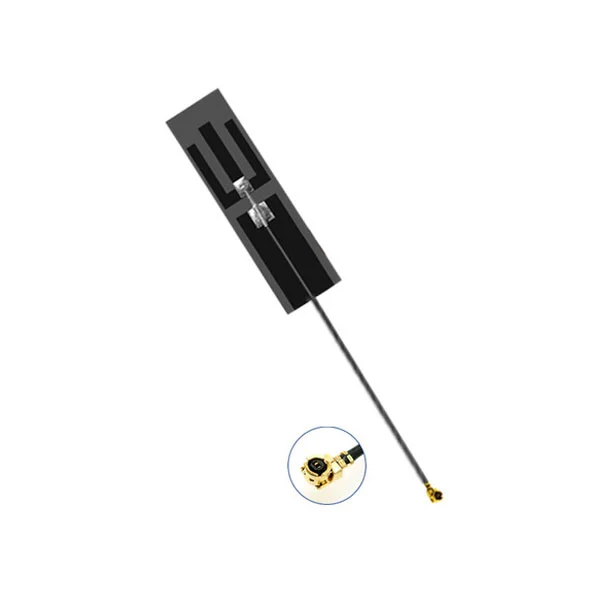

This antenna is an embedded antenna with high efficiency and quick integration for 2.4GHz frequency band, including Bluetooth and Wi-Fi. It has a peak gain of 2.0dBi at 2.4GHz, designed in a PCB with IPEX connector and RF-1.13 cable, which both can be customized.
Dipole antennas offer the advantage of receiving balanced signals.
Embedded Wireless Systems, For World-wide Use, Vertical Polarization.Electrical connection with the FPC is accomplished by soldering the silver pin through the hole on the PCB.
Compact, ideally suited for stealth applications.Built-in ground plane to allow mounting anywhere.
Cable lengths and connectors are fully customizable.
For good efficiency performance the shortest cable length should however not be less than 100mm.
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| Gain | 2.15dBi |
| V.S.W.R | ≤2.0 |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | IPEX |
| Cable Type | 1.13 |
| Cable Length | 10cm |
| Antenna Radome Material | FR4 |
| Mechanical | |
| Dimensions | 35.7x6.8x0.8mm |
| Weight | 5g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
WiFi antenna is one kind of wireless antennas.
It is used to transmit and receive electromagnetic waves in wireless optical splitter with stable signal and low loss.
WiFi antenna is installed on wireless devices like WLAN AP to reinforce signal strength.
