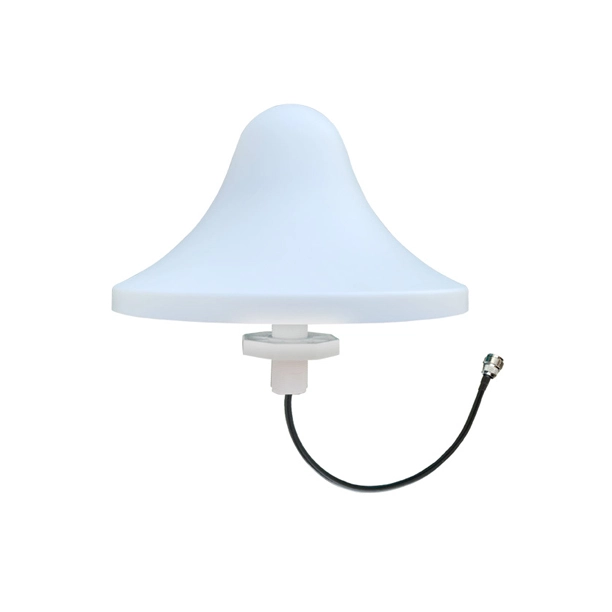

Low-profile and unobtrusive, our indoor dome antenna is designed to be ceiling-mounted so it easily blends with your indoor environment. The antenna transmits and receives signal in a 360 degree pattern and is designed to cover 2G systems for Cellular, PCS, AWS frequencies.
Indoor omni-directional antenna operates in the 1.7-2.2 GHz band and provides 3dBi omni-directional operation, which largely extends the wireless range and delivers much better wireless performance.
Mounting is simplified with a single hole mount design to easily mount to drop ceilings or fixed ceilings.
| Electrical | |
| Frequency Range | 1710-2500MHz |
| Gain | 3dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 55° |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | RG58U |
| Cable Length | 30cm |
| Antenna Radome Material | ABS |
| Mounting way | Ceiling Mount |
| Mechanical | |
| Dimensions | Φ120x40mm |
| Weight | 200g |
| Operating Temperature | -40℃ to+80℃ |
| RoHS Compliant | YES |
Indoor omni-directional antenna operates in the 1.7-2.2 GHz band and provides 3dBi omni-directional operation.
We offer different kinds of Ceiling Mount Antennas.
The antenna can be used for Cellular applications (including GSM, CDMA, GPRS, EV-DO, EDGE, 3G, UMTS and LTE.
