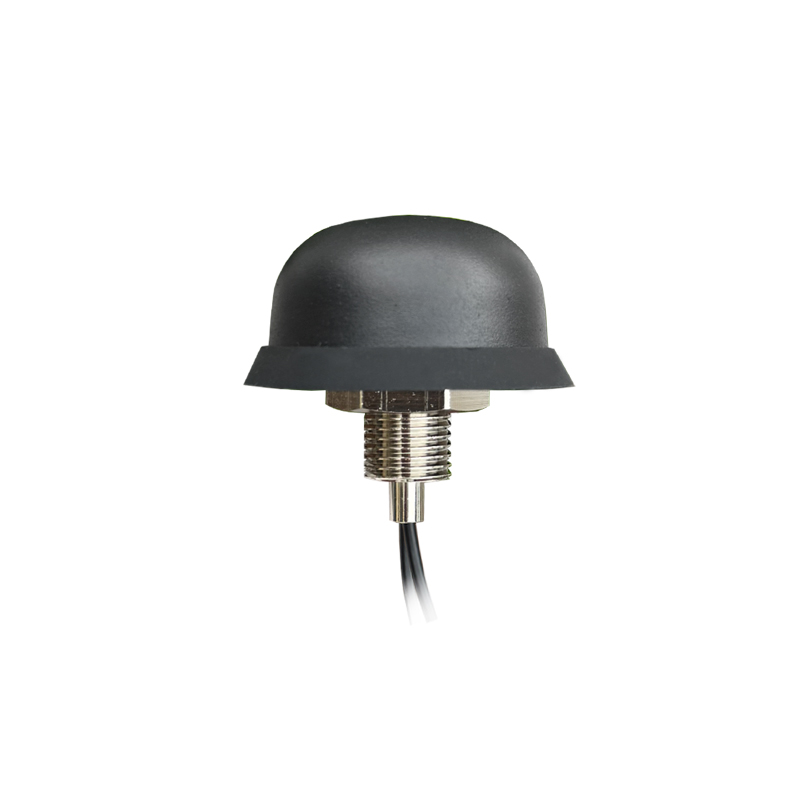

This is a high performance combination LTE and GPS/GLONASS/GALILEO screw mount antenna in a compact housing, for external use on vehicles and outdoor assets worldwide.
The antenna can be mounted on metal and plastic structures.
Customized cable length and connectors are available.
Durable UV resistant IP67 ABS housing is resistant to vandalism and direct attack.
A rubber O-ring is provided under the antenna to prevent water entering under the antenna.
If the lower frequency bands are required the antenna functions best when mounted on a metal ground-plane, but can still work well with short cable lengths below 1 meters on plastic structures and is locked from the inside of the structure by a nut. The thread is extra small, allowing for installation in the tightest of environments.
We recommends minimum of 1m cable length for stable antenna performance.
| Electrical | ||
| GPS Part: | Dielectric Antenna | |
| Frequency Range | 1575.42MHZ±3 MHz/1602-1610MHz | |
| Polarization Type | RHCP | |
| Gain | 2dBi | |
| V.S.W.R | <1.5 | |
| Impedance | 50Ώ | |
| LNA | ||
| LNA Gain | 28±2dB Typical | |
| Noise Figure | 1.5dB | |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
| V.S.W.R | <2.0 | |
| Voltage | 2.7/3.0/3.3/5.0/3.0 to 5.0 etc. | |
| Current Consumption(mA) | 11 Max | |
| LTE Part: | Frequency range | 698-960MHz/1710-2170MHz/ 2500-2800MHz/3400-3600MHz |
| V.S.W.R | ≤2.0:1 Max:5.5 | |
| Gain | 1.2dBi / 698-960MHz; 1.5dBi / 1710-2170MHz, 2.5dBi / 2500-2800MHz; 2.5dBi / 2800-3600MHz | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| Mechanical | ||
| Housing | Black | |
| Cable | 2xRG174 | |
| Length | 2x3/5M or can be customization | |
| Connector | 2xSMA Male or can be customization | |
| Environmental | ||
| Working Temp | -40℃~+85℃ | |
| Humidity | 55%-75%RH | |
| Waterproof | IP67 | |
| Antenna Radome Material | ABS | |
| Mounting way | Screw Mount | |
| Antenna Dimension | Φ50x49mm | |
| Weight | 80g | |
| RoHS Compliant | YES | |
This antenna is specifically designed for the transportation and marine industry.
The 1x Cellular and 1xGPS(GLONASS) MIMO antennas (for 2G/3G/4G/5G) covers the contemporary 690MHz to 3600MHz bands.
Ground planes are metal sheets of metal (typically aluminum or galvanized steel) that the antenna mounts on top of.
