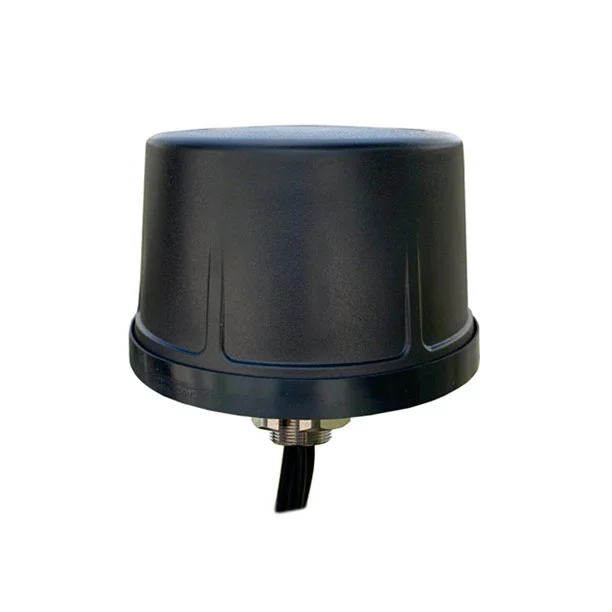

The antenna is a two port antenna with two elements designed to cover the 698-960 and 1710-2700MHz cellular bands
The antenna can be mounted on the roof of a vehicle or fixed structure.
The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.
This antenna is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.
The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance.
The cables are low loss allowing for lengths of up to 10 meters, critical for buses, trains and other commercial transport applications.
Customized cables and connector version available.
| Electrical | |
| Frequency range | 698-960MHz/1710-2700MHz |
| Gain | 3/5dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Impendance | 50Ω |
| Input Power Max | 50W |
| Connector | 2xSMA Male |
| Cable Type | 2xRG174/RG316/RG58U |
| Cable Length | 2x3m or can be customization |
| Antenna Radome Material | ABS |
| Mount way | Screw |
| Mechanical | |
| Housing | Black |
| Operation Temperature | -40℃ to+85℃ |
| Humidity | 65%-95%RH |
| Waterproof | IP67 |
| Antenna Radome Material | PC |
| Mount way | Screw |
| Antenna Dimension | Ф140×84.5mm |
| Weight | 1KG |
This antenna features an easy to install heavy-duty design, making it the \most reliable antenna in its category.
This antenna offers 2x output antennas that deliver powerful worldwide 4G LTE MIMO coverage while also covering the 4G LTE, 3G and 2G bands.
The 4G MIMO SMA-Male High-Performance antenna integrates durability and efficiency into a permanent solution.
This 2 in 1 combination antenna is designed to improve uninterrupted connectivity, better signal quality, and reliability.
