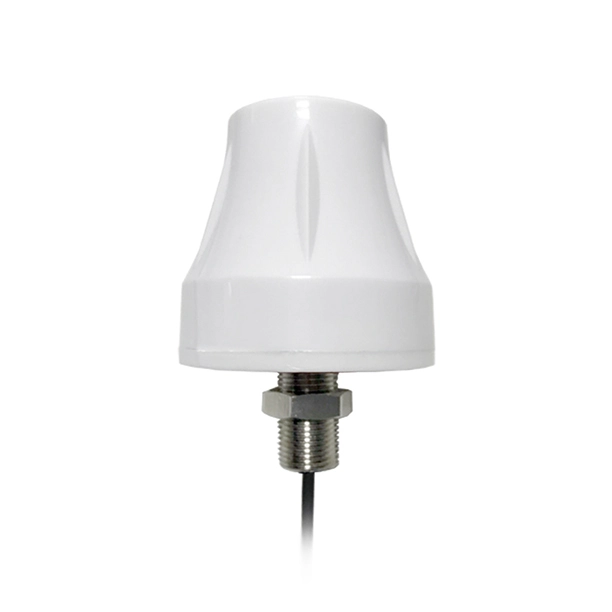

The VHF/UHF antenna can be mounted on roof of the vehicle or on electrical cabinet (e.g. vending machine, passenger information system) .
This antenna with high performance for worldwide use. It provides 433MHz Housed in a rugged low profile ABS resistant, this antenna is compact and resistant to Vandalism.
Screw Fixing and connector can be customed.It is vertically polarized with an omnidirectional radiation pattern.These antennas are mounted directly onto the UHF product and are intended for demonstration use or short range communications.
| Electrical | |
| Frequency Range | 433MHz |
| Band width | ±3MHz |
| Gain | 3dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable Type | RG174 |
| Cable Length | 3M |
| Antenna Radome Material | ABS |
| Mounting way | Screw Mount |
| Mechanical | |
| Dimensions | Φ50×49mm |
| Weight | 80g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
Suitable for outdoor or indoor wireless gear with RP-SMA-female or SMA-female connector.
Capable of extending your wireless range up to 300 meters.
As client antenna it can connect to an access point in any direction.
Asian Creation pays attention to the quality and service. We Keeping progressing, Pursuing integrity, Embracing future. Our teams arelways enthusiastic and welcome to visit us and join hands for a prosperous future.
