Omni directional wifi – wireless antennas for both consumer and commercial grade WiFi networks.
Omni WiFi antennas, broadcast / propagate a full 360 degree radiation pattern, completely surrounding and saturating the radio signal in all directions outwards from the center of the antenna.
Omni WiFi antennas are generally used in public WiFi applications, farms and ranches, public parks, zoos and recreation centers, along with most RV Parks and Marinas.
An omni directional WiFi antenna, generally connects to an access point or router, via coaxial cable, or direct to the outdoor access point.
| Electrical | |
| Frequency Range | 2700-2900MHz |
| Band width | 200MHz |
| Gain | 6.5dBi |
| V.S.W.R | <1.5 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 36° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |

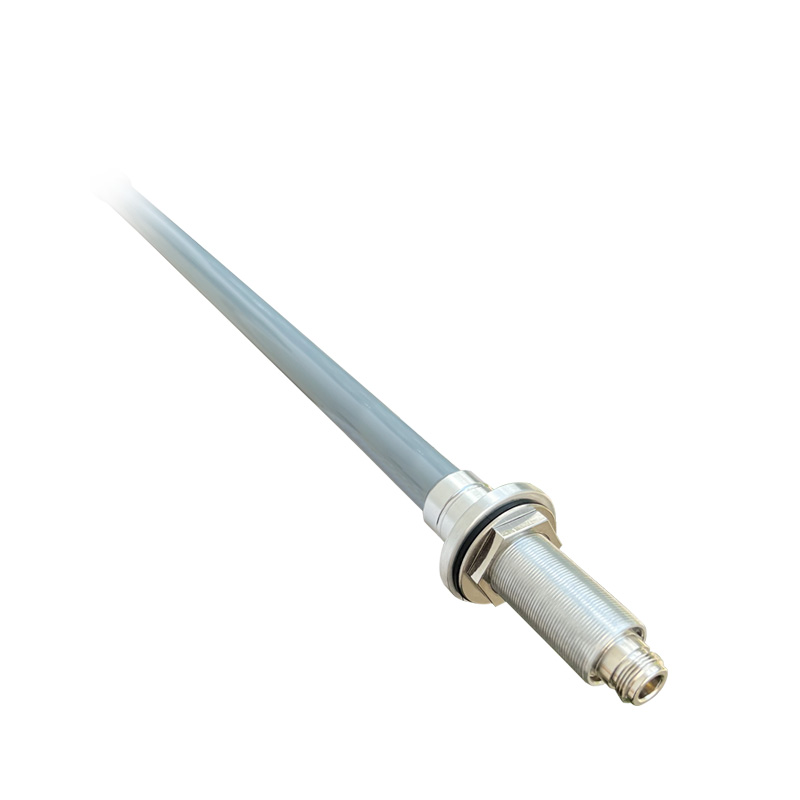

| Connector | N Female |
| Antenna Radome Material | Fiberglass |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | Ø20x500mm |
| Weight | 0.21Kg |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
High gain 2.4 GHz Omni-Directional Antennas are great for throwing a signal long distance.
Designed for the 2.4GHz ISM band, supporting 2.4 to 2.483 GHz.
Superior Performance and Weatherproof and Integrated N connector.
