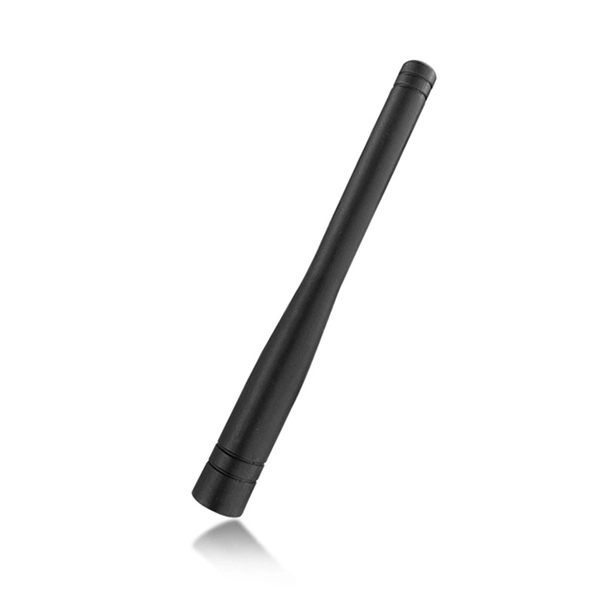

High performance 433MHz omni-directional "rubber duck" antenna provides broad coverage and 3 dBi gain. Rugged design For IOT and M2M Applications.
This small antenna is perfect for hand-help or stationary terminal devices that need wireless connectivity.
At only 100mm in length Omni-directional with a peak gain 0dBi ensures constant reception and transmission.
Terminated with a SMA connector it have been engineered to survive in exposed environments.
| Electrical | |
| Frequency Range | 433MHz |
| Band width | ±3MHz |
| Gain | 3dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Casing | TPE |
| Mechanical | |
| Dimensions | Φ11x100mm |
| Weight | 10g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
Can be made to operate on other VHF and UHF frequencies within the ISM frequency bands .
This is the weather resistant antenna and it can be Suitable for unlicensed band based applications.
The 433 MHz Dipole Antenna SMA Male antenna item is a dipole antenna designed 433MHz antenna 11x100mm radome for RF 315 MHz transmitting applications.
