Our U.FL between series cables can be ordered as well as a MMCX male option.
These cables provide a convenient connector interface for a applications printed circuit board.
Other coax cable options include 1.13mm,1.37mm,RG178,series.
The cable assemblies are available from stock in standard lengths,and custom lengths are available upon request.
| Electrical | |
| Frequency Range | DC to 6GHz |
| Connector 1 | Standard U.FL |
| Connector 2 | Standard MMCX Male Right Angle |
| Plating | Goldplated |
| RF Cable Type | RF1.13/RF1.37/RG178 ect |
| Cable length | 100mm(According to customer customize) |
| Impedance | 50ohms |
| VSWR | 1.5:1 |
| Rated Voltage | AC 60V |
| Contact Resistance | 20m ohm max-signal and ground |
| Withstand Voltage | AC 200V |
| Insulation Resistance | 500M ohm minimum/DC 100V |
| RoHs | YES |
| Temperature | -40℃ to +85℃ |

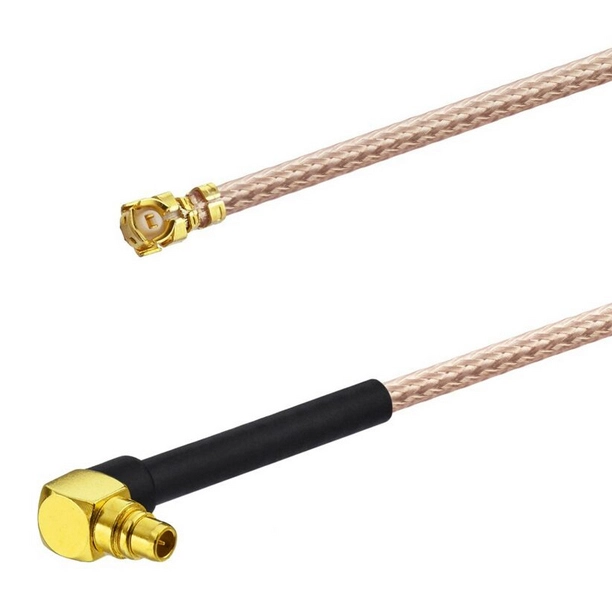

This antenna cable has a U.FL on one end and a MMCX right angle male on the other.
When connecting U.FL connector to a jack on a card or board, often the tight space requires the use of 1.13mm cable.
The 50-ohm impedance of this cable makes it well suited for almost all RF products including GPS, LoRa, and RFID.
