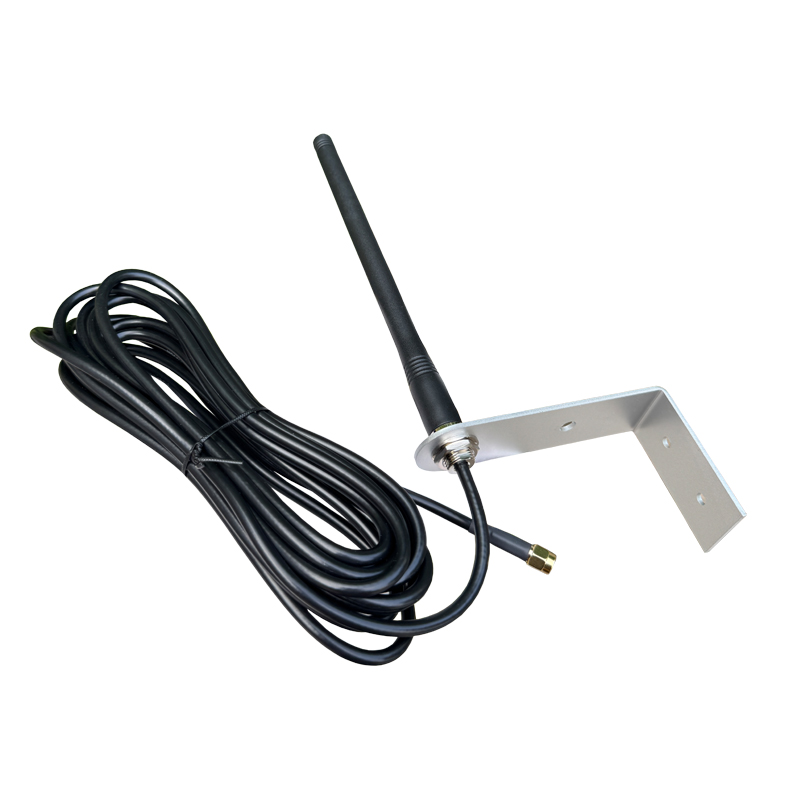

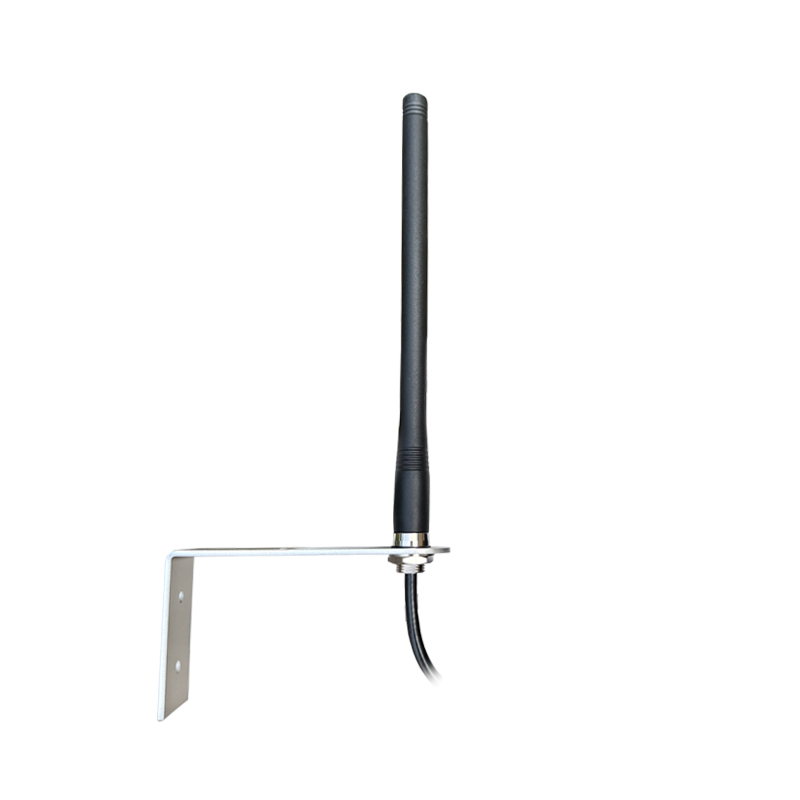

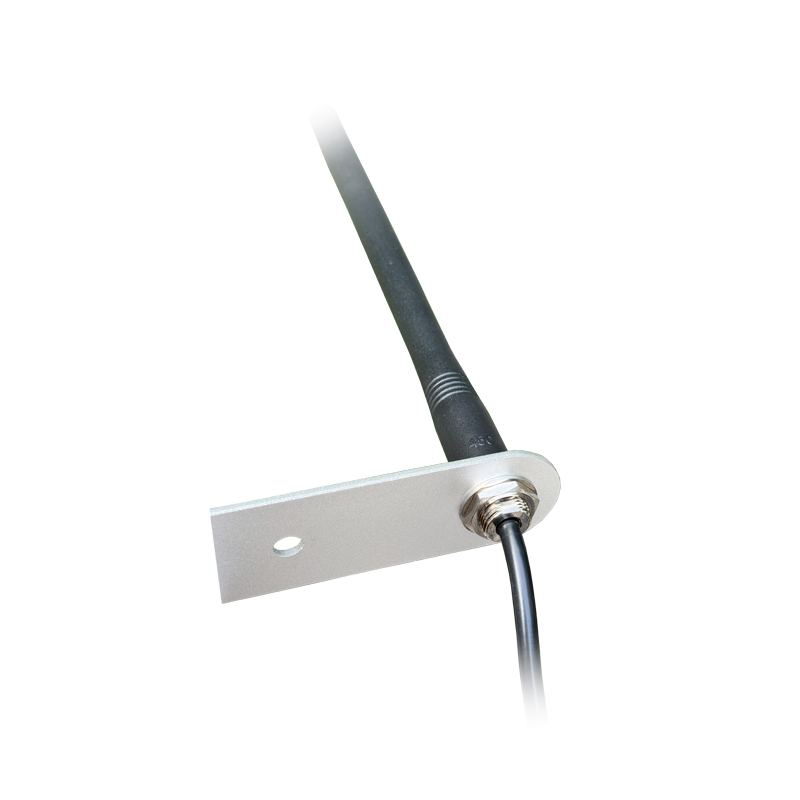

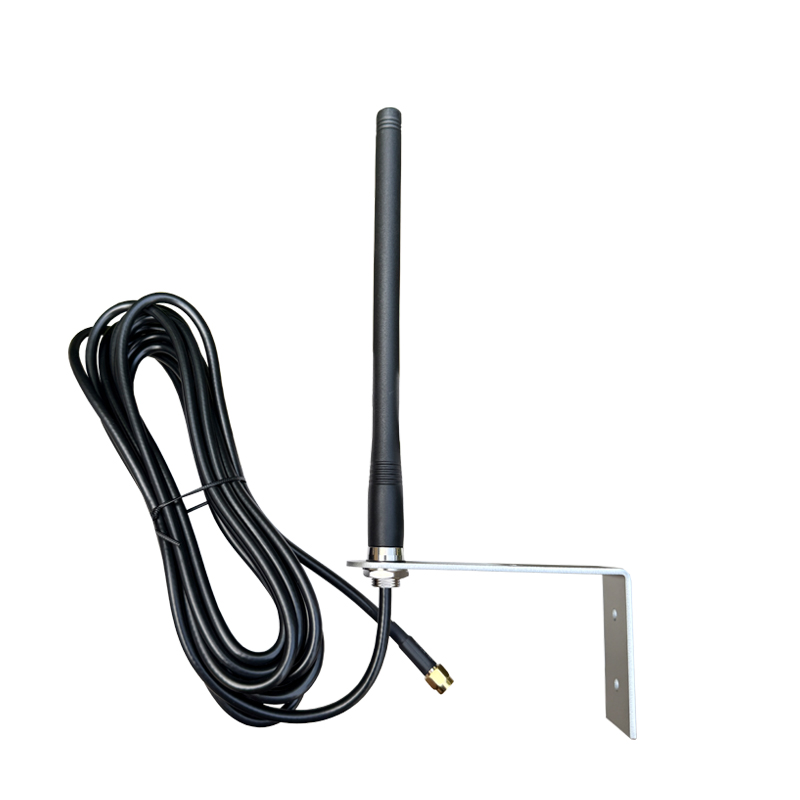

This type wall mount antenna is Compact and light weight with Vertical Polarization that in 800-2170MHz frequency.
Use them with the communication equipment and an antenna tracker to increase range and Received Signal Strength Indication.
Also works great for telemetry receivers.The antenna is ideal for both indoor and outdoor applications.
It includes a ABS radome enclosure that good adaptability of environment.
| Electrical | |
| Frequency Range | 824-960/1710-2170MHz |
| Gain | 3dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC-Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable Type | RG174 |
| Cable Length | 3M |
| Antenna Radome Material | TPE |
| Mounting way | Wall Mount |
| Mechanical | |
| Dimensions | Φ14x205mm |
| Weight | 30g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
This type wall mount antenna offer flexible and discreet waterproof, outdoor antenna solutions for access to cellular networks
The antennas are designed for wall or mast mounting come with 3M cable length.
The cable and connector can be completely customized, the whip itself can also be changed for different frequency bands or gain requirements.
