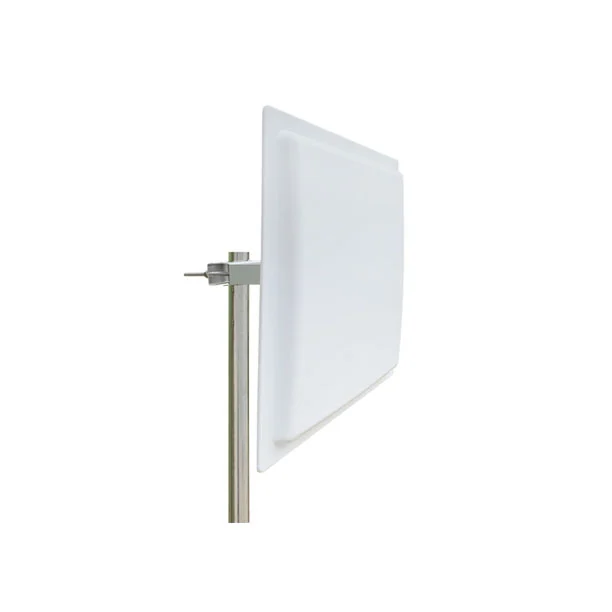

Circular UHF RFID Antenna is a unique PCB near field antenna designed to be used as an extension of development boards that uses electromagnetic field most suitable for short range communication.
The antenna is designed in a curved cover with a diamesion is 250x220x65mm. It's important to mention that this antenna can be used for UHF and RFID applications that operate in a frequency range from 902MHz up to 928MHz.
| Electrical | |
| Frequency Range | 902-928MHz |
| Band width | 26MHz |
| F/B Ratio | ≥15dB |
| Gain | 9dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 60° |
| Vertical Beam width | 60° |
| Polarization | Circular |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | ABS |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 255x220x65mm |
| Weight | 1.6KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
An optional articulating mount allows either wall or mast mounting.
The RFID antenna and RFID tag should be matched in polarization to obtain the best read rates.
If you need to extend the cable attached to the antenna, we offer additional cords to help you out.
