Utilizing a threaded interface, SMA 50 ohm connectors are semi-precision units that provide excellent electrical performance from DC to 6 GHz and outstanding mechanical durability.
These SMA male connectors designs are available in clamp/solder, crimp/solder, crimp/solder (captive contact), field replaceable, solder, solder (without contact), solder/solder or solder/solder (captive contact) attachments.
All our SMA male connectors made with standard or high performance levels available with brass bodies.
| Electrical | ||
| Frequency | DC to 3GHz | |
| Impedance | 50ohms | |

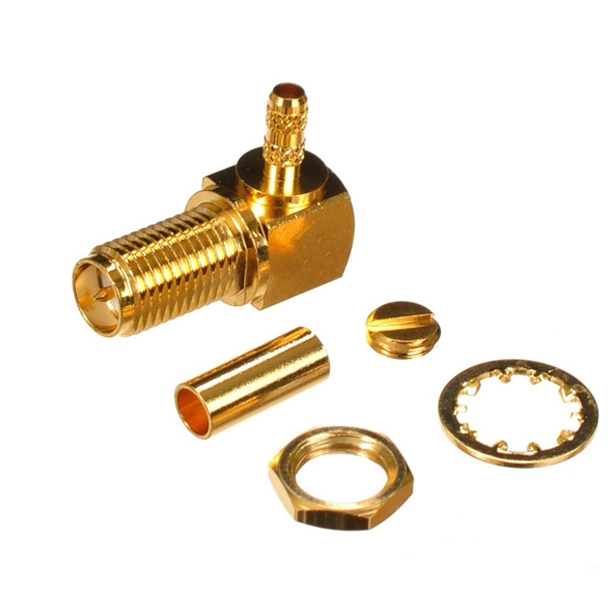

| Orientation | Right Angle | |
| VSWR | Straight 1.20 max .Right angle 1.25 max | |
| Termination Style | Cable crimp | |
| Temp.range | -65～+165°C (PE Cable -40～+85°C) | |
| Vibration | MIL-STD-202,Method 213 | |
| Working Voltage | 335V max | |
| Withstand Voltage | 1000V rms | |
| Center Contact | ≤ 3 mΩ | |
| Outer Contact | ≤ 2 mΩ | |
| Insulation resistance | ≥ 5000 MΩ | |
| Insertion loss | ≤0.15 dB | |
| Durability(mating) | ≥500 cycles | |
| Part Name | Material | Finish |
| Body,Metal Parts | Brass | Gold,Nickel |
| Center Contact (Plug) | Brass | Gold |
| Center Contact (Jack) | Beryllium Copper | Gold |
| Insulator | PTFE | |
| Crimp Ferrule | Annealed Copper | Glod or Nickel |
| Clamp Gaskets | Silicone Rubber | |
There are many kinds of RF connectors provided by Asian Creation: N, TNC, BNC, SMA, SSMA, SMB, SSMB, MCX, MMCX, FME, Qma, SMC, UHF, etc.
SMA direct solder bulkhead jack for RG174 cable.
SMA 90 degree male plug for RG-400 50 ohm coaxial cable.
