Our TNC between series cables can be ordered with female bulkhead versions or reverse polarity connectors as well as a TNC option.
These cables provide a convenient connector interface for a applications printed circuit board.
Other coax cable options include 1.13mm,RG174,RG178,RG316/RG58U,LMR cable series.
The cable assemblies are available from stock in standard lengths,and custom lengths are available upon request.
| Electrical | |
| Frequency Range | DC to 6GHz |
| Connector 1 | Standard RP TNC Male Straight |
| Connector 2 | Standard RP TNC Female Straight |
| Plating | Goldplated |
| RF Cable Type | RF1.13/RG178/174/316/58U,LMR cable ect |
| Cable length | 100mm(According to customer customize) |
| Impedance | 50ohms |
| VSWR | 1.5:1 |
| Rated Voltage | AC 60V |
| Contact Resistance | 20m ohm max-signal and ground |
| Withstand Voltage | AC 200V |
| Insulation Resistance | 500M ohm minimum/DC 100V |
| RoHs | YES |
| Temperature | -40℃ to +85℃ |

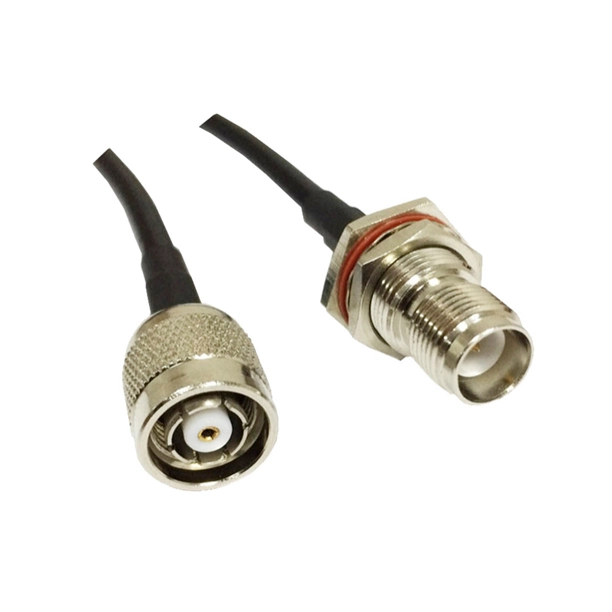

This antenna cable has a RP TNC male on one end and a RP TNC bulkhead female on the other.
Nickel-plated connector body & nickel-plated center pin contact.
TNC cable assemblies are suitable for applications including industrial connectivity and external antennas.
