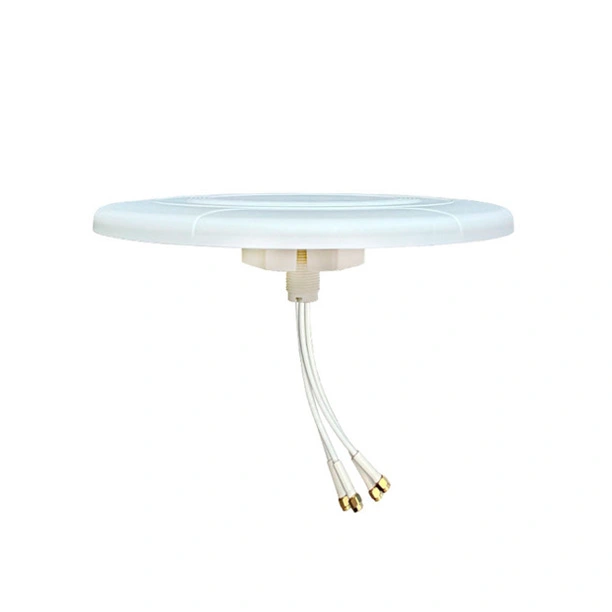

Designed and produced to meet prescriptive specifications provided by major telecom operators, this compact antenna provides full MIMO operation on WIFI and wireless.
This configuration ensures operation on all 2.4G and 5G networks worldwide, with very high MIMO performance on upper bands used in metro and urban areas.
The antenna supports frequencies from 2483MHz to 5850mhz, whilst providing high performance and high gain of up to 3dBi.This antenna is typically supplied with three 3m cable and SMA connector, however, the cable length and connector can be tailored for specific requirements.
This antenna is ideal for extending the coverage of WIFI networks internally, such as, inside shopping centres, hospitals, universities, etc.
| Electrical | |
| Frequency Range | 2400-2483MHz/5150-5850MHz |
| Gain | 3dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | 3xSMA Female |
| Cable Type | 3xRG58U |
| Cable Length | 3x30cm |
| Antenna Radome Material | ABS |
| Mounting way | Ceiling Mount |
| Mechanical | |
| Dimensions | Φ190x85mm |
| Weight | 730g |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
The antennas can also be configured for WiFi applications at both 2.4 GHz and 5 GHz.
If you are looking for special frequencies or configuration in our ceiling mount antennas, please consult us directly for latest information. We’ll be most happy to answer any questions you may have.
This multi-band ceiling mount antenna is designed to be mounted indoors, on a suspended ceiling with either flush or recess mounted ceiling tiles.
