MMCX connectors are coaxial RF connectors similar to MCX but smaller.
The connectors have a lock-snap mechanism allowing 360-degree rotation and usually have a 50 Ω impedance.
They offer broadband capability from DC to 6 GHz.
MMCX connectors are most commonly seen on Wi-Fi PCMCIA cards as antenna connectors or as connectors for external GPS antennas on small devices like PDAs or GPS receivers.
They are also used by various brands of in-ear monitors to connect the cable to the individual earpieces.
This allows for the cables to be replaced or swapped.
| Electrical Specifications | ||
| Temp.range | ’-55～+165°C | |
| Impedance | 50Ω | |
| Frequency Range | DC～6GHz | |
| Working Voltage | 170V max | |
| Withstand Voltage | 500V rms | |

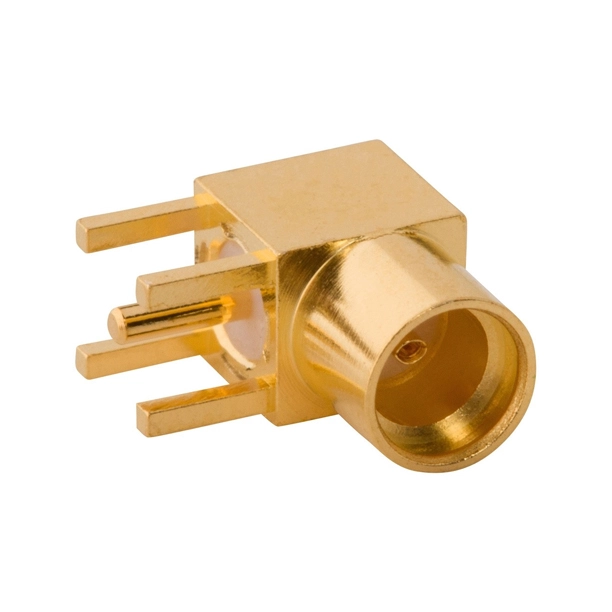

| Orientation | Right angle | |
| Termination Style | PCB | |
| Contact resistance | ||
| Center Contact | ≤ 5 mΩ | |
| Outer Contact | ≤ 2.5 mΩ | |
| Insulation resistance | ≥ 1000 MΩ | |
| VSWR Right Angle | ≤1.25 | |
| Durability(mating) | ≥500（cycles） | |
| MATERIAL & PLATING | ||
| Shell | Brass | Gold plated |
| Elastic contact | Beryllium | Gold plated |
| Inner conductor | Beryllium or tin brass | Gold plated |
| Insulator | PTFE Crimping suite | Copper alloy |
| Contact pin | Brass | Gold plated |
The connector utilises a slot-less design to minimise RF leakage.
The Gold centre pin should be soldered and the barrel crimped.
MMCX, micro-miniature connectors are designed with a 50 ohm impedance.
