Our MMCX between series cables can be ordered as well as an N female option.
These cables provide a convenient connector interface for a applications printed circuit board.
Other coax cable options include 1.13mm,RG174,RG178,RG316 series.
The cable assemblies are available from stock in standard lengths,and custom lengths are available upon request.
| Electrical | |
| Frequency Range | DC to 6GHz |
| Connector 1 | Standard MMCX Male Straight |
| Connector 2 | Standard N Bulkhead Female Straight |
| Plating | Goldplated |
| RF Cable Type | RF1.13/RG174/RG178/RG316 ect |
| Cable length | 100mm(According to customer customize) |
| Impedance | 50ohms |
| VSWR | 1.5:1 |
| Rated Voltage | AC 60V |
| Contact Resistance | 20m ohm max-signal and ground |
| Withstand Voltage | AC 200V |
| Insulation Resistance | 500M ohm minimum/DC 100V |
| RoHs | YES |
| Temperature | -40℃ to +85℃ |

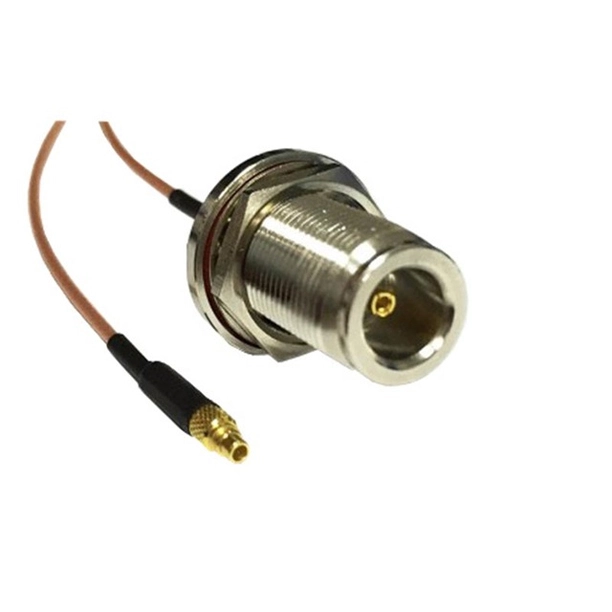

This antenna cable has a MMCX male on one end and a N bulkhead female on the other.
Gold-plated connector body & gold-plated center pin contact.
Perfect for extending the reach of a Wi-Fi antenna in conjunction with a wireless access router/gateway.
