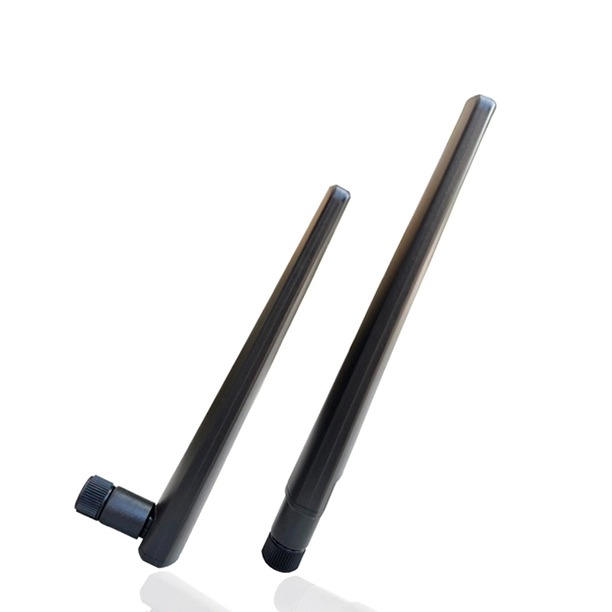

This is a 5G/4G monopole Ultra-Wideband Omni-Directional antenna.
It is primarily designed for use with 4G LTE modules and devices, It has high efficiency across the ultra-wide band and is backward compatible with 2G and 3G cellular applications such as GSM, LTE, UMTS, WI-FI applications.
With very high efficiency on every cellular band globally, it is an ideal solution for any device requiring high, reliable performance.
An antenna is a ground plane independent antenna with an SMA (M) connector and swivel mechanism that allows the antenna part to be rotated.
The antenna blade can swivel 90 degrees from the connector accommodating different installation configurations.
| Electrical | |
| Frequency Range | 600-960/1710-6000MHz |
| Gain | ≤2.0；Max:3.5@2700MHz |
| V.S.W.R | ≤3.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Antenna Radome Material | ABS |
| Mechanical | |
| Dimensions | Φ13x152mm |
| Weight | 19g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
Click to see CBRS 5G antenna list.
Supporting 2G/3G/4G and new 5G bands this antenna is the ideal one-size-fits-all solution for next-generation router and modem devices.
5G LTE Cost-Effective Solution Dual-Band WiFi Blade Style and Plug & Play Product Antenna.
Covers 5G wideband and supplied with straight or right angle hinge connector.
