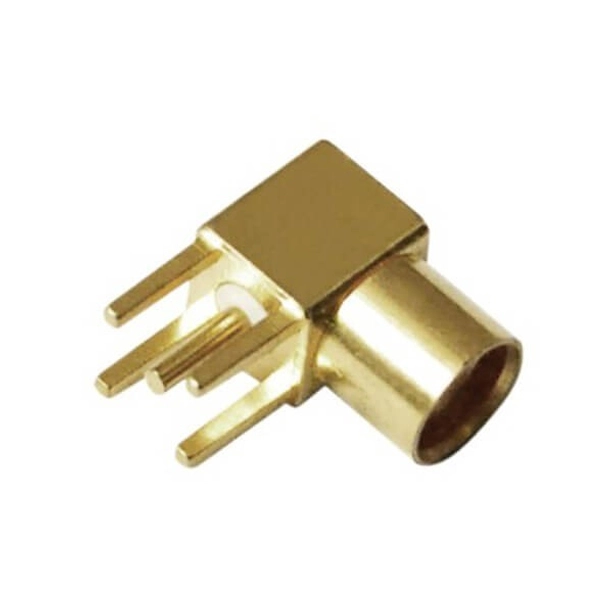

MCX connextors use a snap-on interface and usually have a 50 Ω impedance (some are 75 Ω) .
They offer broadband capability from DC to 6 GHz.
The contact surfaces are gold-plated.This type of connector is used on the Apple Airport Extreme
Base Station's external antenna port and requires an adapter for most antennas.
MCX and the smaller MMCX connector are frequently used to connect external antennas to GPS receivers.
They are also common on USB DVB-T tuners for computers and laptops, to connect an external antenna to the tuner.
| TECHNICAL CHARACTERISTICS | ||
| Temp.range | ’-65～+165°C | |
| Impedance | 50Ω | |
| Frequency Range | DC～6GHz | |
| Working Voltage | 250V (50Ω) | |
| Withstand Voltage | 750V (50Ω) | |
| Orientation | straight | |
| Termination Style | PCB | |
| Contact resistance | ||
| Center Contact | ≤ 5 mΩ | |
| Outer Contact | ≤ 2.5 mΩ | |
| Insulation resistance | ≥ 1000 MΩ | |
| VSWR Straigh | ≤1.15 | |
| Durability(mating) | ≥500（cycles） | |
| MATERIAL & PLATING | ||
| Shell | Brass | Gold plated |
| Contact pin | Brass | Gold plated |
| Socket | Brass | Gold plated |
| elastic contact | Beryllium | Gold plated |
| Insulator | PTFE | |
| Crimping suite | Copper alloy | Nickel or Gold plated |
Despite standards identifying an operating frequency to 3 GHz, most manufacturers commercially offer connectors to 6 GHz.
This type MCX Male Crimp Connector RF Coaxial cable assembly compatiable with Antenna Pigtails.
Characteristic impedance has two types: 50ohm and 75 ohm.
