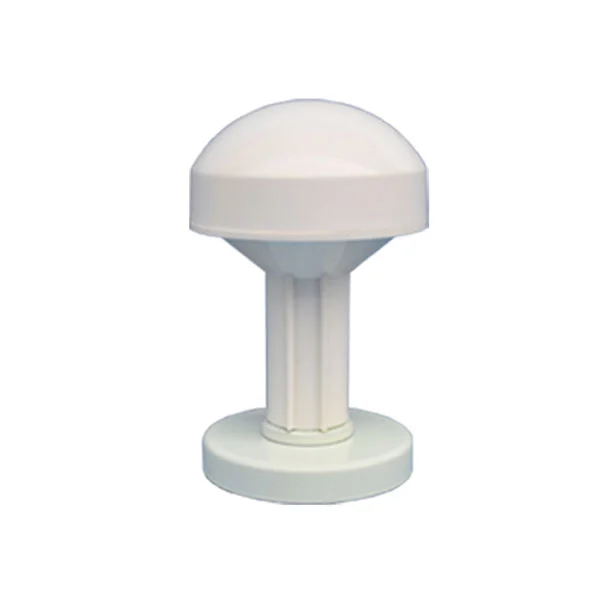

GPS white marine antenna is designed for boat which require high positioning accuracy by GPS signals, it is durability antenna for outdoor or indoor use.
The active marine antenna is designed for long life in challenging environments. The radome is molded of ABS resin for excellent weatherability.
Impervious to the toughest outdoor/off-road conditions including dust, water, shock, and vibration Highly accurate position and heading sensor with GPS networking, position and course is automatic updated for smooth and accurate location and trail marking.
| Electrical | |
| Frequency Range | 1575.42MHz±3MHz |
| Polarization Type | RHCP |
| Gain | 5dBic(zenith) |
| V.S.W.R | <1.5 |
| Impedance | 50Ω |
| LNA Gain | 38dB |
| Noise Figure | <1.3 |
| Filter Insertion Loss | <3dB |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz |
| Supply Voltage | 3~5V DC |
| Current Consumption | 18~35mA |
| LNA V.S.W.R | <2.0 |
| Connector | N Male |
| Antenna Radome Material | ABS |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
| Mechanical | |
| Size | Φ95x74mm |
| Weight | 150g |
| Operating Temperature | -40℃~+80℃ |
| Relative Humidity | Up to 95% |
| Waterproof | IP67（Not include the line port) |
| RoHS Compliant | YES |
This Active GPS Navigatio antenna with Low profile design and Non-corrosive.
It is ideally affixed to the plastic housing of a device directly screw-mounting, or slot.
Highly accurate position and heading sensor with GPS networking.
