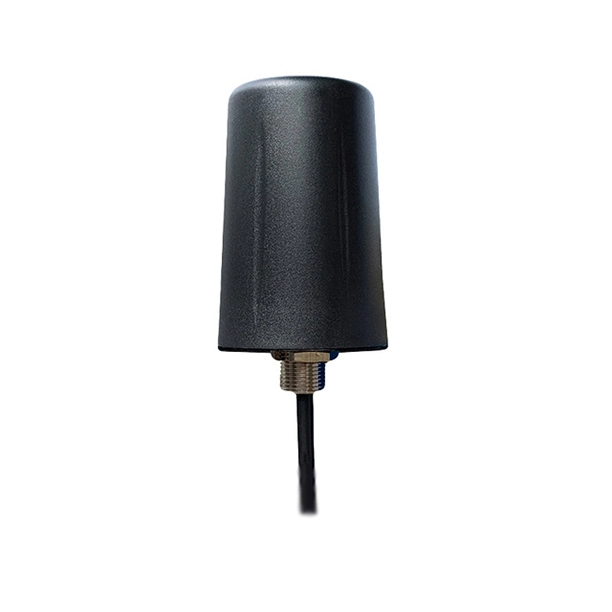

LTE terminal antennas AC-Q7027-DL complement Mobile LTE broad line of antenna products for Cellular applications.
Antenna with performance of 3 & 5 dBi max(frequency dependent).
A ground plane is required to maximize gain.
The antenna radome consists of black ASA UV resistant plastic, with a heavy duty metal baseand threaded feed thru.
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 3dBi |
| V.S.W.R | ≤2.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable Type | RG58U |
| Cable Length | 3M |
| Antenna Radome Material | ABS |
| Mounting way | Screw Mount |
| Mechanical | |
| Dimensions | Φ48x82mm |
| Weight | 160g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
It is covering all cellular bands ranging from 698 to 960, 1710 to 2170, and 2500 to 2700 MHz.
It is Ultra wide band High performance connector mount antenna solution for worldwide 4G LTE with 2G, 3G fallback compatibility.
Supporting 2G/3G/4G and new 5G bands this is the ideal one-size-fits-all solution for next-generation devices.
