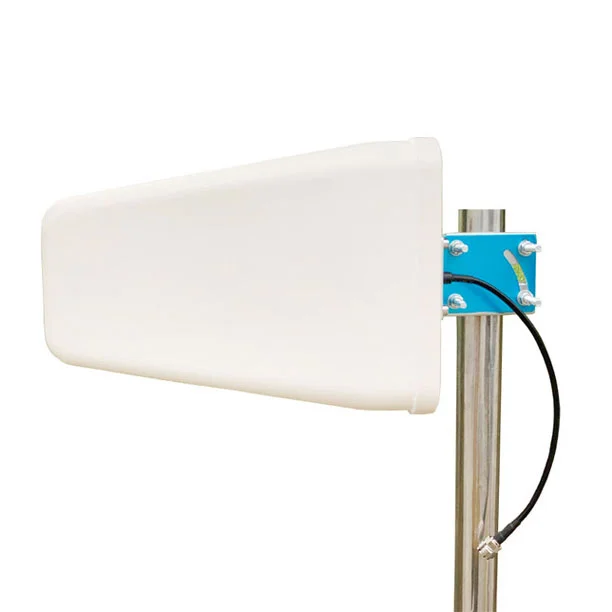

The directional log-periodic UWB dipole array directional antenna is compatible with all 3G 4G/LTE and cellular operators.It can also be used with 2.4G Wi-Fi access points systems.
The optimized 4G router antenna supports frequency range from 698MHz to 2700MHz. It can work on universal range 2G/3G/4G mobile networks.
The default cellular antenna on our 4G router is 5dB antenna which receives signals from all directions.
The external antennas on the regular indoor 4G router and home WiFi routers are 3~5dB only.
The cellular log-periodic antenna has a higher-gain up to 9dB. It can help you get 2 times stronger signal on the 4G routers.
| Electrical | |
| Frequency Range | 806-960/1710-2700MHz |
| F/B Ratio | ＞16dB |
| Gain | 7/9dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 90° |
| Vertical Beam width | 60° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | RG58U |
| Cable Length | 30cm |
| Antenna Radome Material | ABS |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 295x195x65mm |
| Weight | 588g |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
It can work on universal range 2G/3G/4G mobile networks and can help you get 2 times stronger signal on the 4G routers.
The default cellular antenna on the 4G router which receives signals from all directions.
The LPDA Antenna supports all of 2G/3G/4G mobile networks and has a higher-gain up to 7/9dB.
