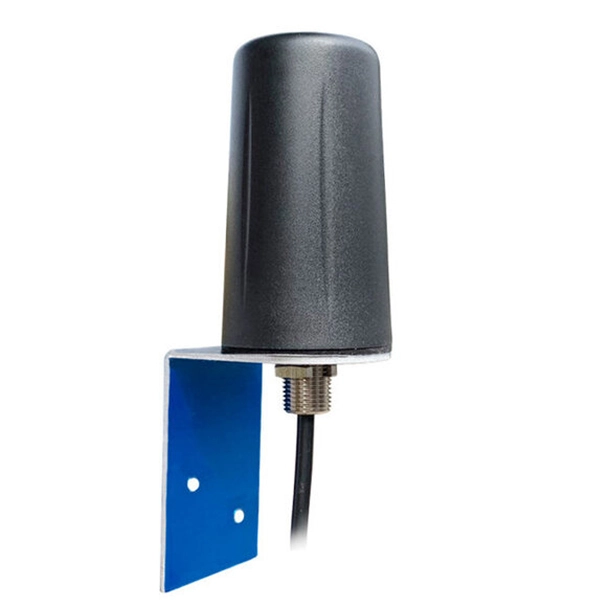

This is the ideal antenna for 2.4&7G gateway routers that provide Wi-Fi hotspots. It has been designed for heavy-duty work with extra thick threads; with durable UV-resistant ABS housing is resistant to vandalism and direct attack.
It can operate and its quality is proven by growing worldwide.
The antenna housing is completely waterproof to IP67 which means it is waterproof against high.
Electrical
| Frequency Range | 2400-2495/5170-5835/5925-7125MHz |
| Gain | 3/5dBi |
| V.S.W.R | ≤2.0:1 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | RP SMA Male |
| Cable Type | RG58U |
| Cable Length | 3M |
| Antenna Radome Material | ABS |
| Mounting way | Wall Mount |
Mechanical
| Dimensions | Φ48x82mm |
| Weight | 200g |
| Operating Temperature | -40℃ to+70℃ |
| Waterproof | IP67 |
| Humidity | Non-condensing 65°C 95%RH |
| RoHS Compliant | YES |
This capacity to cover Wi-Fi 6 frequencies up to 7.125GHz. Compared to other much larger antennas on the marke.
This dual-band Wi-Fi hinged rotatable antenna is a high-efficiency monopole antenna.
This low-profile antenna can be use for for outdoor or indoor applications and the Phantom covers 5.1 GHz -7.1 GHz.
