These low-profile omni-directional antennas offer great value for OEMs, VARs and Systems Integrators looking for multiband coverage, performance reliability and an attractive
"consumer oriented" housing at an affordable price,Ideal applications include in-building public safety, retail establishments,
enterprise networks. public "hot spots" and facilities management. The antennas come in a variety of mounting options, including SMA type, N type connector options.
Mounting is simplified with a single hole mount design to easily mount to drop ceilings or fixed ceilings.
| Electrical | |
| Frequency Range | 824-960MHz |
| Gain | 3dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 55° |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | RG58U |
| Cable Length | 30cm |
| Antenna Radome Material | ABS |
| Mounting way | Ceiling Mount |
| Mechanical | |
| Dimensions | Φ125x60mm |
| Weight | 260g |
| Operating Temperature | -40℃ to+80℃ |
| RoHS Compliant | YES |
We carry a large selection of indoor broadcast cellular ceiling mount antennas for commercial and residential buildings.

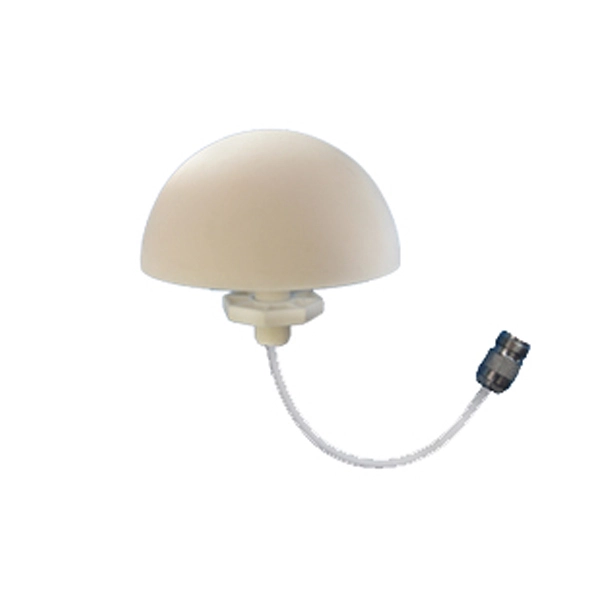

This Inside Dome Antenna is a 50 Ohm indoor, ceiling-mount antenna used to broadcast boosted 3G signals from the signal booster.
It's powerful wide-band coverage features up to 3 dBi gain.
Asian Creation pays attention to the quality and service. We Keeping progressing, Pursuing integrity, Embracing future. Our teams arelways enthusiastic and welcome to visit us and join hands for a prosperous future.
