This type wall mount directional antenna is Compact and light weight with Vertical Polarization that in 824-960/1710-1880MHz frequency.
Use them with the communication equipment and an antenna tracker to increase range and Received Signal. Strength Indication. Also works great for telemetry receivers.
The antenna is ideal for both indoor and outdoor applications.
Being Bracket mount it is designed to be mounted on a ground plane for optimal performance.
Cable and Connector can be Customed.
| Electrical | |
| Frequency Range | 880-960/1710-1880MHz |
| Gain | 3.5dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable Type | RG174/RG58 |
| Cable Length | 30cm or can be customization |
| Antenna Radome Material | TPE |
| Mounting way | Wall Mount |
| Mechanical | |
| Dimensions | Φ14x205mm |
| Weight | 30g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
The whip and the connection internally to the bracket is completely IP66 waterproof.

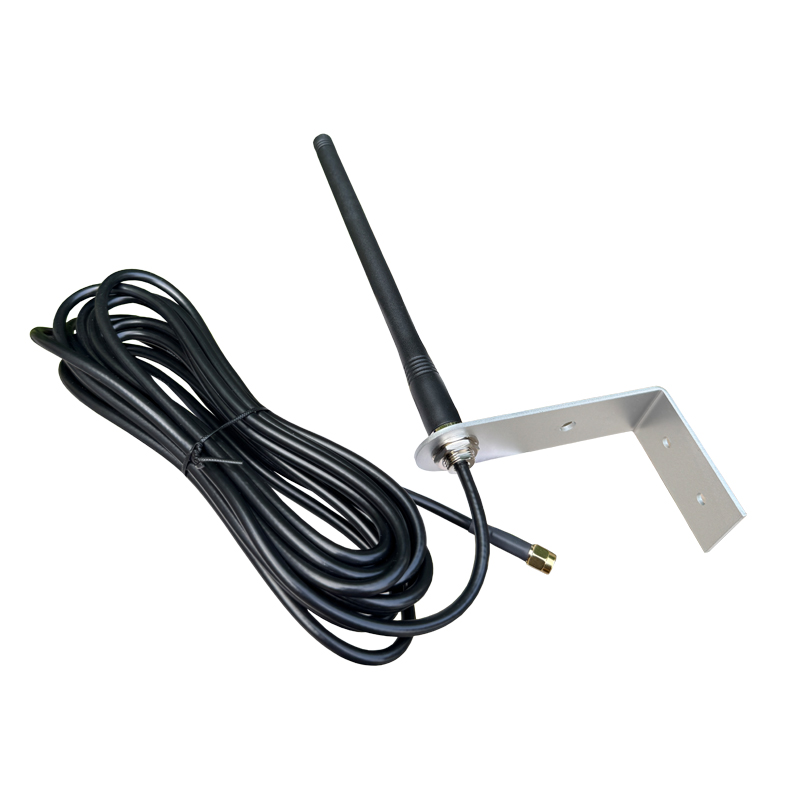

The bracket allows complete concealment of the cable for a more secure integration and cleaner installation.

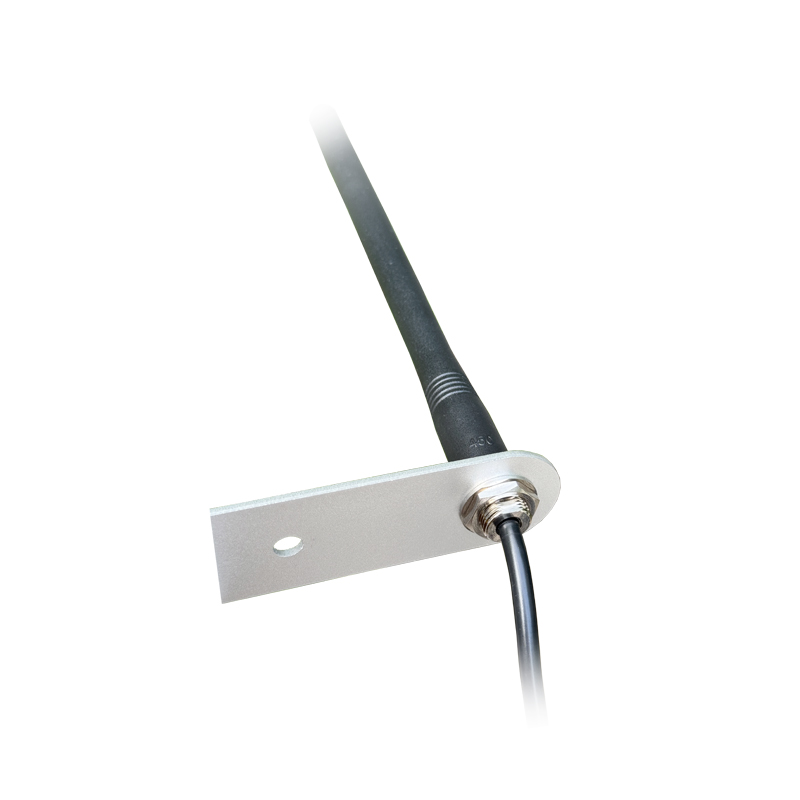

A compact whip antenna with wall mount breaket for GSM cellular applications where high performance is required from a small size.
