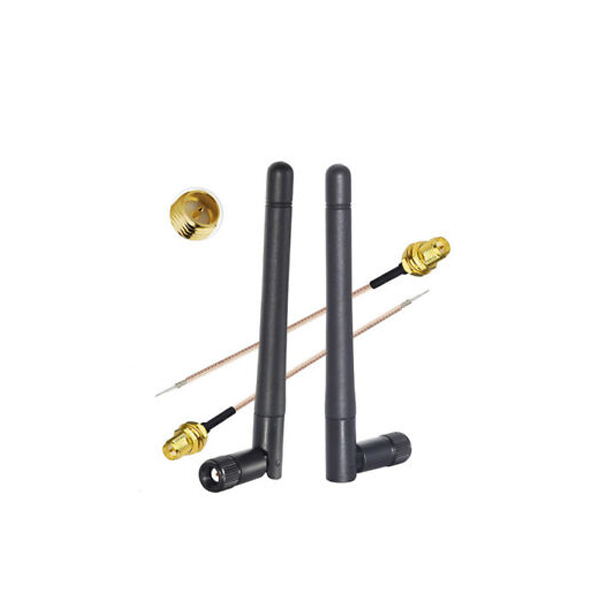

GSM terminal Antenna is primarily designed for use with CDMA/GSM modules . It does not require a ground plane to connect to. It has a quality robust housing for use with wireless terminals.

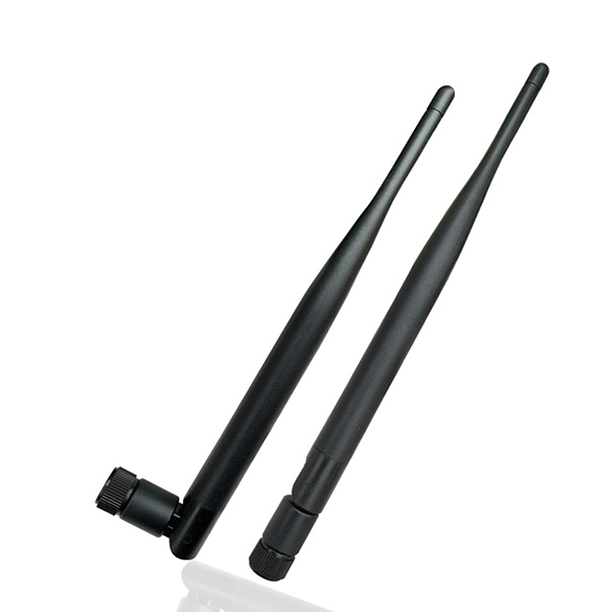

The antenna has a SMA(M) or female connector. It can be used straight or hinged 90 degrees.
The antenna has a wide-band response and can also be used for other cellular and wireless applications such as GSM, LTE,UMTS.
| Electrical | |
| Frequency Range | GSM850:824-896MHz GSM900:890-960MHz |
| DCS:1710-1880MHz PCS:1850-1990MHz | |
| Gain | 2.15dBi |
| V.S.W.R | ≤2.5;Max3.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Antenna Radome Material | TPE |
| Mechanical | |
| Dimensions | Φ8x108mm |
| Weight | 7g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
cellular Rubber Duck Portable Antenna Operates From 900 MHz to 960 MHz With a Nominal 2.15 dBi Gain SMA Connector.
The cellular rubber duck antennas are wireless access point antennas for public safety, ISM, Wi-Fi, LTE and other applications.
They operate on frequencies from 800 MHz to 1990 MHz and bulkhead mounts are offered.
