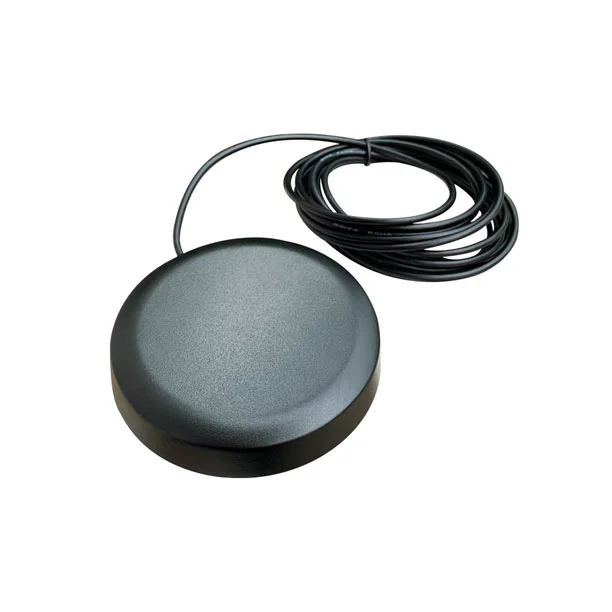

GSM Sticker cellular band antenna delivers marked improvements in efficiency and gain across all common frequencies（824-960/1710-1880MHz) in use for cellular bands.
Self-adhesive base made the antenna fix stronger!
Small enough to be used indoors and outdoors, the antenna performance has been designed to take advantage of any metal plate (ground-plane) it attaches to deliver best of class performance.
| Electrical | |
| Frequency Range | 824-960/1710-1880MHz |
| Gain | 3dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Cable Type | RG174 |
| Cable Length | 3M |
| Antenna Radome Material | ABS |
| Mount way | 3M Stick |
| Mechanical | |
| Dimensions | Φ80x15mm |
| Weight | 65g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
In the 1800MHz and 1900MHz bands it can be used with Personal Communication Services (PCS) cellular radio wireless applications.
This antenna is also compatible with UMTS 1900 MHz and UMTS 2100 MHz applications. In all bands it supports LPWAN/IoT/M2M apllications.
The compact size of this antenna is ideal where omni-directional coverage and low visibility are desired.
