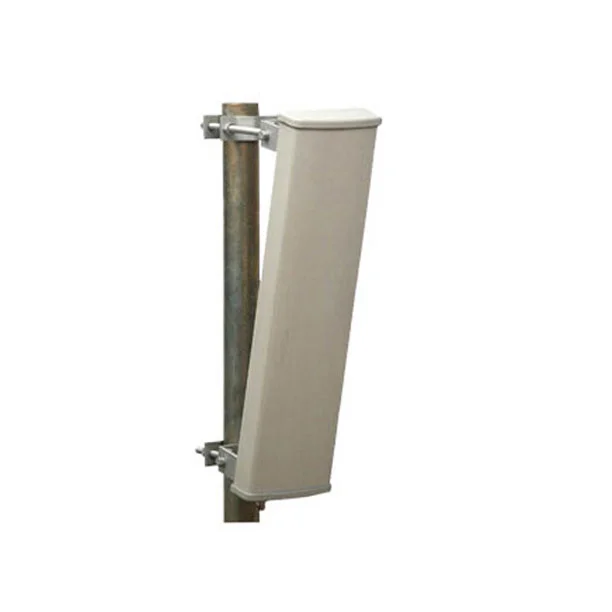

Sector Antennas are designed to improve RF performance and versatility in high-capacity, long-range,point-to-point deployments. Join the Sector Antenna with an outdoor access point to create a powerful, IP65-rated, environmentally resistant, wireless base station with 120 degree.
The Sector Antennas support cross-platform compatibility with an access point plug-in mounting system or by connecting any outdoor APs by utilizing the appropriate antenna.
| Electrical | |
| Frequency Range | 800-960MHz |
| F/B Ratio | ＞25dB |
| Gain | 17dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 65° |
| Vertical Beam width | 9° |
| Polarization | Vertical or Horizontal |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 200W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | PVC |
| Mounting way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 1930x285x130mm |
| Weight | 8.8KG |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
Click to see GSM sector antenna list.
The sector antenna commonly used by internet service providers(WISPs) to transmit wireless signals to multiple clients in the network and in point-to-multipoint base station applications.
Six of 65°these antennas mounted to a tower provides complete 360° coverage.
Sector antennas are characteristically constructed for serving the signal to many clients within one sector (for examle 65° area).
