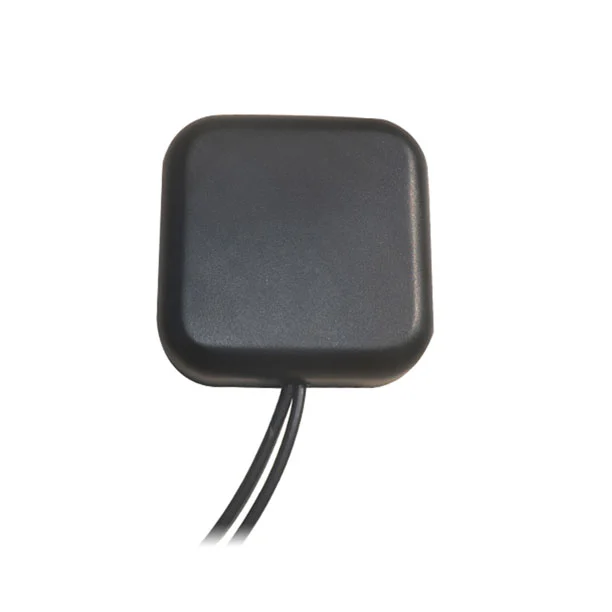

The GPS/LTE combo antennas have been designed to provide maximum performance and versatility for telematics applications, including fleet monitoring and asset tracking.
The antennas precise performance and easy of installation provides outstanding value and flexibility for the most demanding wireless mobile applications.
Magnetic mount, and permanent adhesive mount will be choose.
It is good use to put it on top of the car, and then take it for travel.
| Electrical | ||
| GPS Part: | Dielectric Antenna | |
| Frequency Range | 1575.42MHz±3 MHz | |
| Polarization Type | RHCP | |
| Gain | 2dBi | |
| V.S.W.R | <1.5 | |
| Impedance | 50Ώ | |
| LNA | ||
| LNA Gain | 28±2dB Typical | |
| Noise Figure | 1.5dB | |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
| V.S.W.R | <2.0 | |
| Voltage | 2.7/3.0/3.3/5.0/3.0 to 5.0 etc. | |
| Current Consumption(mA) | 11 Max | |
| LTE Part: | Frequency range | 698-960/1710-2700MHz |
| V.S.W.R | <2.0 | |
| Gain | 2dBi | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| Mechanical | ||
| Housing | Black | |
| Cable | 2xRG174 | |
| Length | 2x3/5M or can be customization | |
| Connector | 2xSMA Male or can be customization | |
| Environmental | ||
| Working Temp | -40℃~+80'℃ | |
| Humidity | 55%-75%RH | |
| Waterproof | IP66 | |
| Antenna Radome Material | ABS | |
| Mounting way | Self Adhesive or Magnetic | |
| Antenna Dimension | 63x63x18mm | |
| Weight | 180g | |
| RoHS Compliant | YES | |
Fully IP66 certified, give this antenna full protection to water and dust in the harshest environments.
Designed with a Self Adhesive or Magnetic, this antenna can be securely and easily installed on vertical or horizontal surfaces without the need for grounding.
With an omni-directional radiation pattern, the antenna position should be aligned in 360-degree line of sight for optimal and uninterrupted signal strength.
