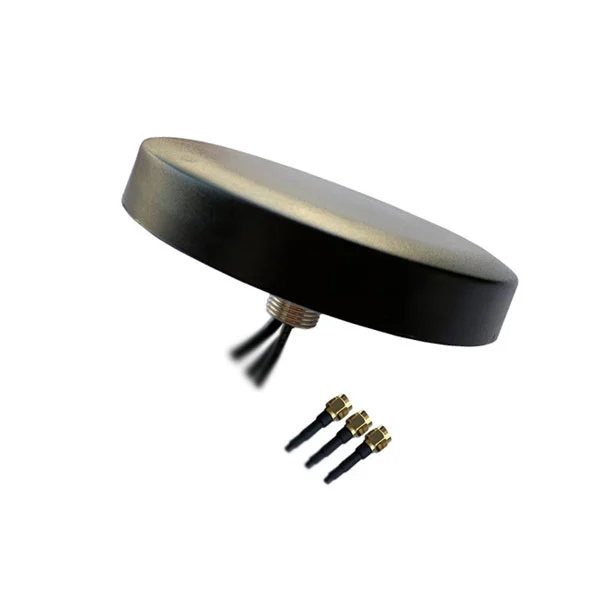

The GPS/GSM/WIFI combo antennas have been designed to provide maximum performance and versatility for telematics applications, including fleet monitoring and asset tracking.
The antennas precise performance and easy of installation provides outstanding value and flexibility for the most demanding wireless mobile applications.
Magnetic mount, and permanent adhesive mount will be choose.
It is good use to put it on top of the car, and then take it for travel.
| Electrical | ||
| GPS Part: | Dielectric Antenna | |
| Frequency Range | 1575.42MHz±3 MHz | |
| Polarization Type | RHCP | |
| Gain | 2dBi | |
| V.S.W.R | <1.5 | |
| Impedance | 50Ώ | |
| LNA | ||
| LNA Gain | 28±2dB Typical | |
| Noise Figure | 1.5dB | |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
| V.S.W.R | <2.0 | |
| Voltage | 2.7/3.0/3.3/5.0/3.0 to 5.0 etc. | |
| Current Consumption(mA) | 11 Max | |
| Cellular Part: | Frequency range | 824-960/1710-2170MHz |
| V.S.W.R | <2.0 | |
| Gain | 3dBi | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| WIFI Part: | Frequency range | 2400-2500MHz |
| V.S.W.R | <2.0 | |
| Gain | 2.15dBi | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| Mechanical | ||
| Housing | Black | |
| Cable | 3xRG174 | |
| Length | 3x3/5M or can be customization | |
| Connector | 3xSMA Male or can be customization | |
| Environmental | ||
| Working Temp | -40℃~+85'℃ | |
| Humidity | 55%-75%RH | |
| Waterproof | IP65 | |
| Antenna Radome Material | ABS | |
| Mounting way | Screw Mount | |
| Antenna Dimension | Ф80x15mm | |
| Weight | 150g | |
| RoHS Compliant | YES | |
The GPS GSM WIFI combination high-performance antenna integrates durability and efficiency into a permanent solution.
This antenna offers 3x output antennas that deliver powerful worldwide GSM coverage while also covering the GPS and WIFI bands.
This antenna features an easy to install heavy-duty design, making it the most cost performance antenna in its category.
