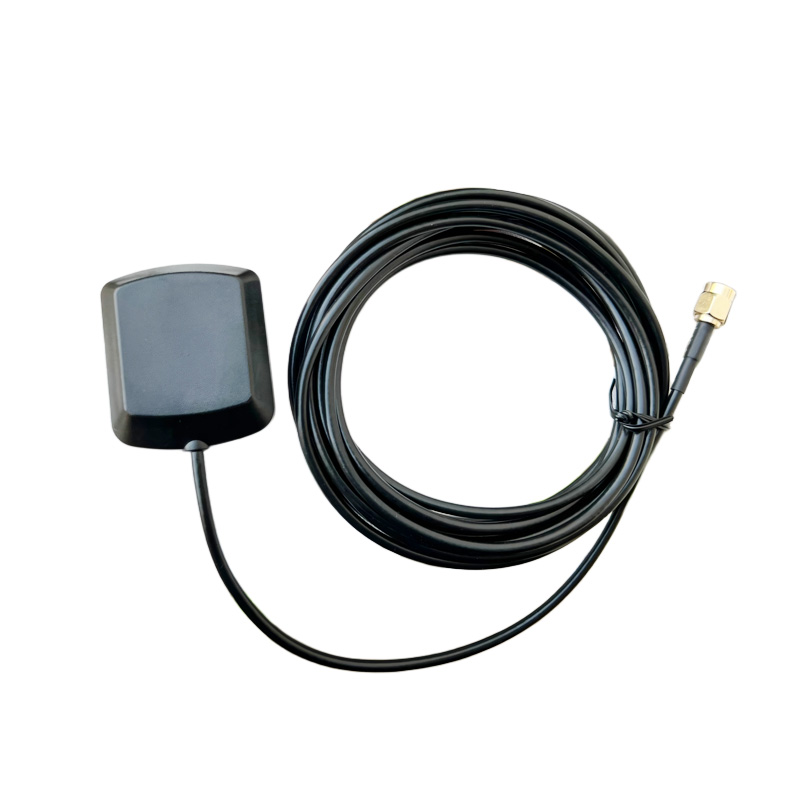

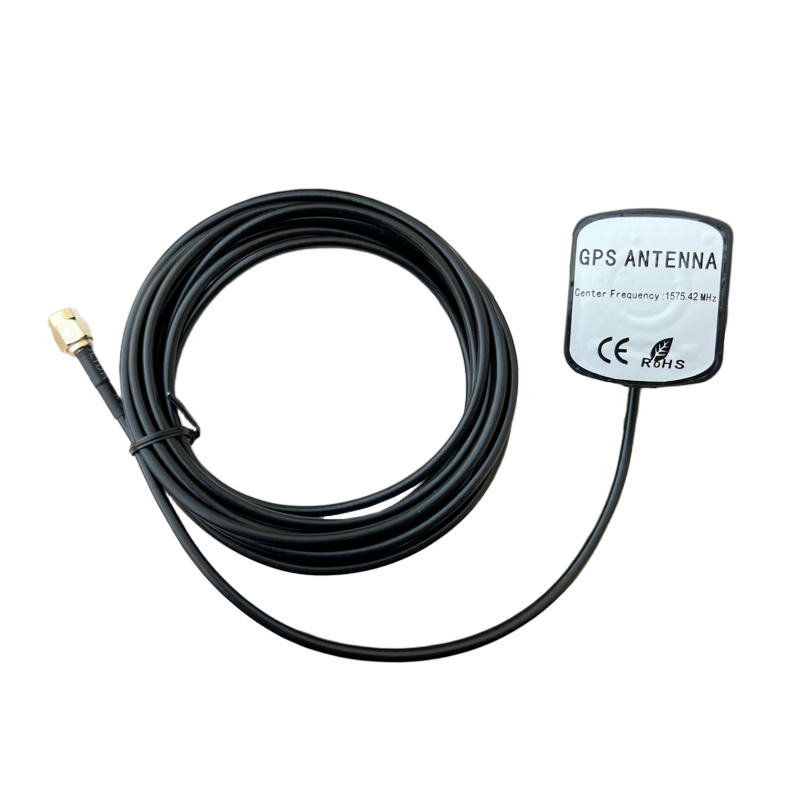

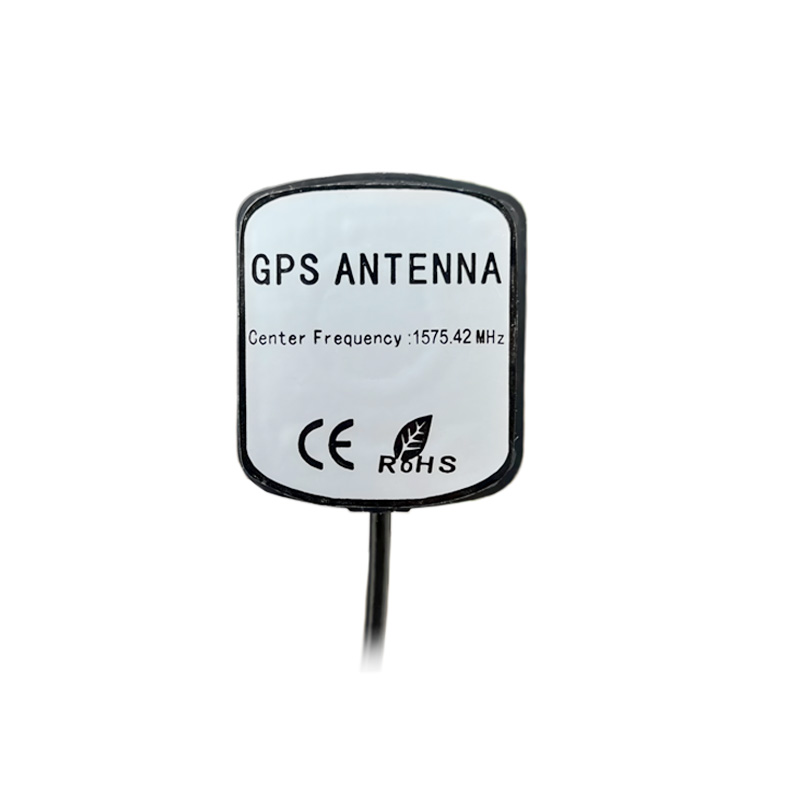

This is a high performance active RHCP antenna, It features a precisely tuned custom ceramic patch antenna element and a matching network. The antenna is enclosed in a rugged, fully weatherproof housing.
This antenna is designed for applications which require high positioning accuracy GPS systems.
High gain wideband patch antenna on a large integral ground delivers maximum performance.
| Electrical | ||
| Antenna | Frequency Range | 1575.42MHz±3MHz |
| Band Width | CF±5MHz | |
| V.S.W.R | ＜1.5 | |
| Polarization Type | RHCP | |
| Gain | 2dBic(Zenith) | |
| Impedance | 50Ώ | |
| Axial Ratio | 3dB(max) | |
| Dimension | 25*25*4mm | |
| LNA | Gain | 28±2 dB Typical |
| Noise Figure | <1.5dB | |
| DC Voltage | 2.2-5.0V | |
| DC current | 5-15mA | |
| V.S.W.R | ＜2.0 | |
| Mechanical | Housing | Black |
| Cable | RG174 | |
| Length | 3M(Can be customized) | |
| Connector | SMA Male(Can be customized) | |
| Antenna Radome Material | ABS | |
| Mounting way | Magnetic or Adhesive | |
| Environmental | Dimensions | 44x35x13mm |
| Weight | 60g | |
| Operating Temperature | -40℃~+80℃ | |
| Humidity | UP to 95% | |
| Waterproof | IP65-67 | |
| RoHS Compliant | YES |
This is the Street vehicle roof mount installation antenna.Is use for Car Navigation Systems, Fleet Management Systems.
This GPS Active antenna has embedded high performance LNA with ceramic patch. Can be choose to Mounting on several surfaces. (e.g. glass, plastics, metal ...)
The GPS (Global Positioning System) antenna is a device that receives and amplifies the signals transmitted by GPS satellites in order to determine the location of a receiver.
