Light weight, low profile, easy to assemble and hide the high gain LNA is made of low noise microwave components to ensure the sensibility of the system.
This GPS antenna is ideal for GPS enabled ruggedized PDAs, laptops and portable GPS Handhelds.
It features a compact ceramic patch element, ESD circuit protection, a low noise amplifier and a SAW fi lter, enabling the antenna to provide great out-of-band signal rejection performance, consistent and clear signal while minimizing loss-of-lock in an extremely small form factor.

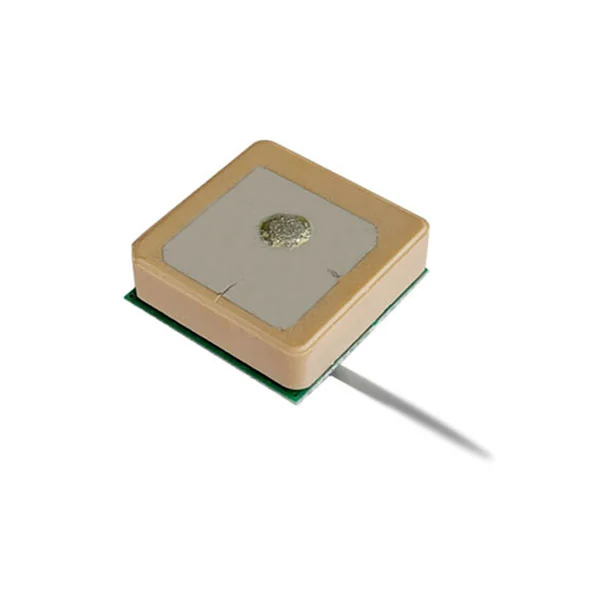

An internal GPS active patch antenna with cable is used in most mobile devices today that require high signal strength in a small form factor.
Our internal GPS active patch antennas come in a range of sizes from 10mm to 40mm.
| Electrical | ||
| Antenna | Frequency Range | 1575.42MHz±3MHz |
| Band With@10dB | 5MHz MIN | |
| Gain | -3.5dB typ @13mmx13mm groundplane | |
| Polarization Type | RHCP | |
| V.S.W.R | ＜2.0 | |
| Impedance | 50Ω | |
| Dimensions | 15x15x4.5mm | |
| LNA | Frequency Range | 1575.42MHz±3MHz |
| LNA Gain | 15±3dB(without cable @25°C±10°C) | |
| Noise Figure | 1.5MAX | |
| DC Voltage | 2.2-5.0V | |
| DC current | 5-15mA | |
| V.S.W.R | ＜2.0 | |
| Mechanical | ||
| Mechanical | Cable | 1.13 |
| Length | 100mm | |
| Connector | U.FL | |
| Environmental | Antenna Radome Material | Ceramics |
| Operating Temperature | -40℃~+85℃ | |
| Relative Humidity | Up to 75% | |
| Weight | 8g | |
| RoHS Compliant | YES |
Our patch antenna offerings are perfect for projects with a smaller scope.
This antenna is designed for embedded applications such as GNSS handheld units, mobile devices, and tracking devices.
It features a low noise figure and high-linearity LNA. The interface connector is available in U.FL or other.
