The GPS/4G combo antennas have been designed to provide maximum performance and versatility for telematics applications, including fleet monitoring and asset tracking.
The antennas precise performance and easy of installation provides outstanding value and flexibility for the most demanding wireless mobile applications.
Magnetic mount, and permanent adhesive mount will be choose.
It is good use to put it on top of the car, and then take it for travel.
| Electrical | ||
| GPS Part: | Dielectric Antenna | |
| Frequency Range | 1575.42MHz±3 MHz | |
| Polarization Type | RHCP | |
| Gain | 2dBi | |
| V.S.W.R | <1.5 | |
| Impedance | 50Ώ | |
| LNA | ||
| LNA Gain | 28±2dB Typical | |
| Noise Figure | 1.5dB | |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
| V.S.W.R | <2.0 | |
| Voltage | 2.7/3.0/3.3/5.0/3.0 to 5.0 etc. | |
| Current Consumption(mA) | 11 Max | |
| 4G Part: | Frequency range | 698-960/1710-2700MHz |
| V.S.W.R | <2.0 | |
| Gain | 3dBi | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| Mechanical | ||
| Housing | Black | |
| Cable | 2xRG174 | |
| Length | 2x3/5M or can be customization | |
| Connector | 2xSMA Male or can be customization | |
| Environmental | ||
| Working Temp | -40℃~+80'℃ | |
| Humidity | 55%-75%RH | |
| Waterproof | IP67 | |
| Antenna Radome Material | ABS | |
| Mounting way | Screw Mount | |
| Antenna Dimension | 91x62x62mm | |
| Weight | 165g | |
| RoHS Compliant | YES | |

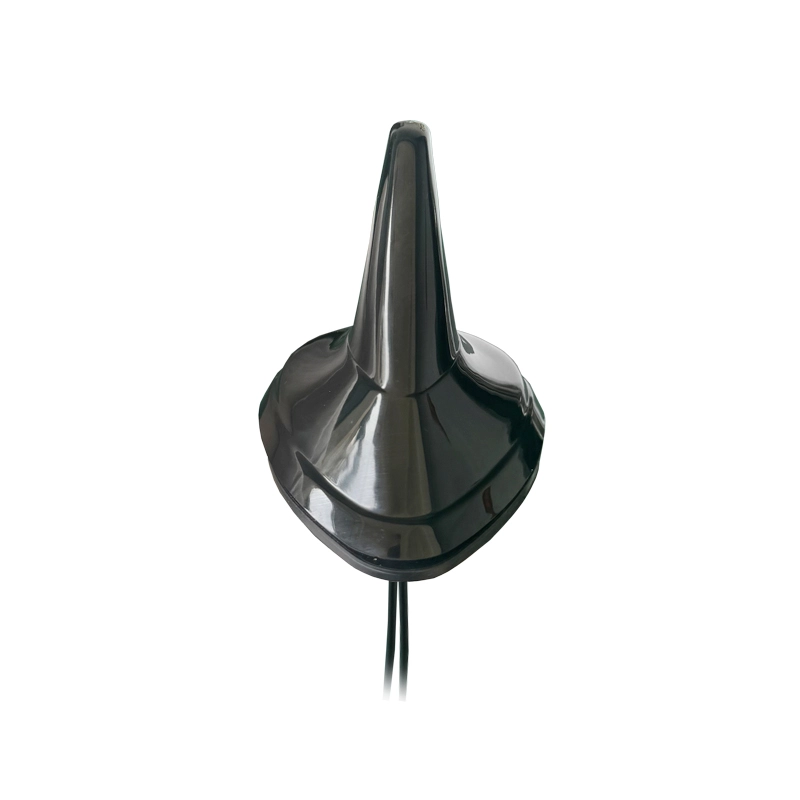

The LTE/GPS Screw Mount Antenna is a 2-in-1 'Shark Fin', high-performance antenna ideal for powerful global connection on the move.
The Cellular/LTE (Cable 1) is designed within 4G LTE, 3G and 2G standards.
This makes it ideal for tracking/mapping devices, automobile navigation, commercial transportation, M2M and worldwide voice/data communications.
