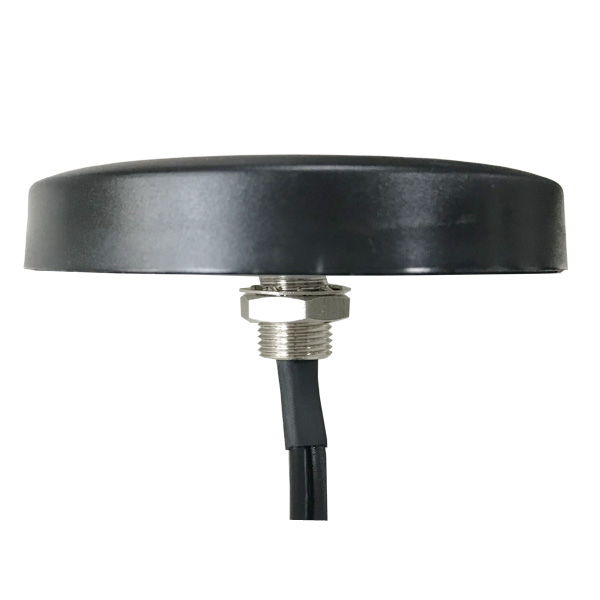

GPS+IRIDIUM is a dual-band antenna covering both GPS and IRIDIUM frequencies.Its proprietary filtering design allows wide band coverage while achieving superior out-of-band rejection.
This antenna comes in an ABS shell ,non-corrosive low profile package for vehicle mounting or fixed installations.
This antenna is ideal for any global GPS/BD tracking or time synchronization application that requires an externally mounted antenna.
The antennas can be used for the GPS, GLONASS, Beidou, and Galileo networks and can either be embedded or used externally with a device.
| Electrical | ||
| IRIDIUM | Frequency range | 1616-1626.5 MHz |
| V.S.W.R | <1.8 | |
| Gain | 3dBi | |
| Impendance | 50Ω | |
| Polarization | RHCP | |
| Lightning protection | DC Grounded | |
| Axial ratio | <4dB | |
| Load capacity | 8W | |
| GPS/GLONASS | Frequency range | 1575-1614 MHz |
| V.S.W.R | ＜2.0 | |
| LNA Gain | 28±2dB Typical | |
| Impendance | 50Ω | |
| Noise Figure | 3-3.5dB | |
| DC Voltage | 2.2-5.0V | |
| DC current | 5-15mA | |
| Mechanical | ||
| Housing | Black | |
| Cable | 2xRG174 | |
| Length | 2x20CM | |
| Connector | 2xSMA Male or can be customization | |
| Environmental | ||
| Working Temp | -40℃~+80'℃ | |
| Humidity | 55%-75%RH | |
| Waterproof | IP67 | |
| Antenna Radome Material | ABS | |
| Mounting way | Screw Mount | |
| Antenna Dimension | 130×130×20mm | |
| Weight | 200g | |
| RoHS Compliant | YES |
GPS+IRIDIUM is a dual-band antenna covering both GPS and IRIDIUM frequencies
ABS shell ,non-corrosive low profile package for vehicle mounting or fixed installations.
Can be used for the GPS, GLONASS, Beidou, and Galileo networks
