Our MCX to TNC cable assembly product portfolio normal use flexible or formable coaxial cable.

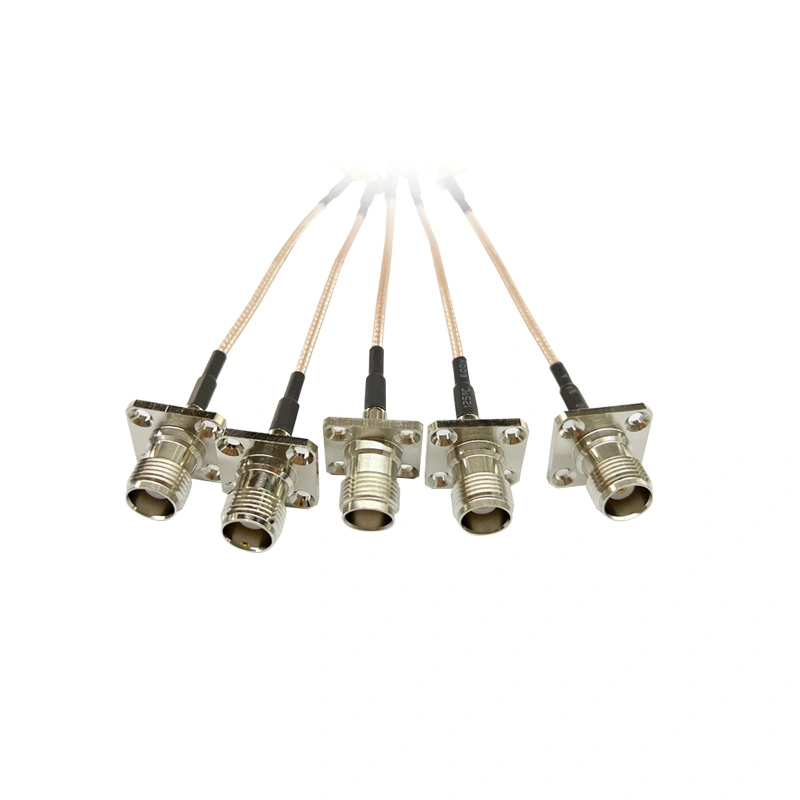

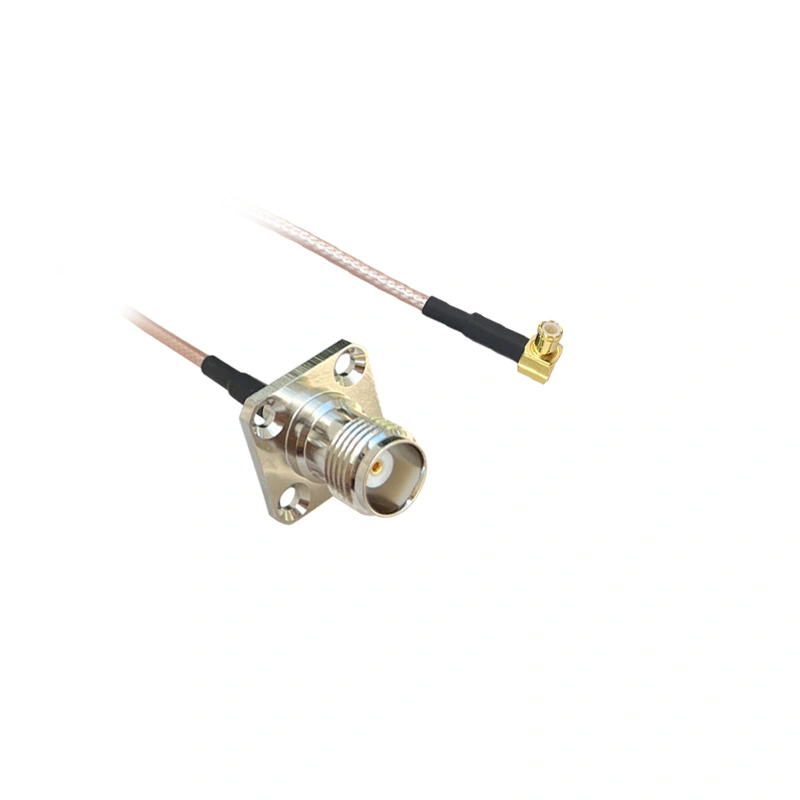

MCX to TNC assemblies are built with Low loss cable assembly, one side TNC Female 4 Hole Panel Mount connector, the other side MCX Male Right Angle connector, RG178/RG316/RG174 optional. Low VSWR.Our MCX to TNC cable assemblies are available with options that include heatshrink booting, customer defined labeling ;cable length and more.
Coaxial cable assemblies are 100% continuity tested and total RF testing and phase matching can be specified.
| Electrical | |
| Frequency Range | DC to 6GHz |
| Connector 1 | TNC Female 4 Holes Flange Mount |
| Connector 2 | Standard MCX Male Right Angle |
| Plating | Nicked |
| RF Cable Type | RF1.13/RF1.37/RG178 ect |
| Cable length | 100mm(According to customer customize) |
| Impedance | 50ohms |
| VSWR | 1.5:1 |
| Rated Voltage | AC 60V |
| Contact Resistance | 20m ohm max-signal and ground |
| Withstand Voltage | AC 200V |
| Insulation Resistance | 500M ohm minimum/DC 100V |
| RoHs | YES |
| Temperature | -40℃ to +85℃ |
Made entirely of copper material
IP67 waterproof process
Low wire loss braided RG178 CABLE
