For outdoor/indoor applications. Excellent for hotspots, kiosks, M2M, IoT, telemetry and vehicle applications. Ideal for use in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal-resistant external antenna. Also suitable for vehicle mounting on buses, vans, trucks or other mobile installations.
Completely waterproof (IP67) when installed with a post extending into a water-tight enclosure.
This low profile fixed mount omnidirectional antenna provides 3 to 5 dB of gain and supports 2.4G/5G dual bands for worldwide carriers.
Electrical
| Frequency Range | 2400-2483/5150-5850MHz |
| Gain | 4dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Antenna Radome Material | ABS |
| Mounting way | Screw Mount |
Mechanical
| Dimensions | Φ48×85mm |
| Weight | 110g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
The terminal antenna has superior wide-band high-efficiency characteristics.
The direct mount terminal connector enables a more robust mating to the device compared to a SMA the locking feature prevents the antenna coming loose due to vibration or shock.

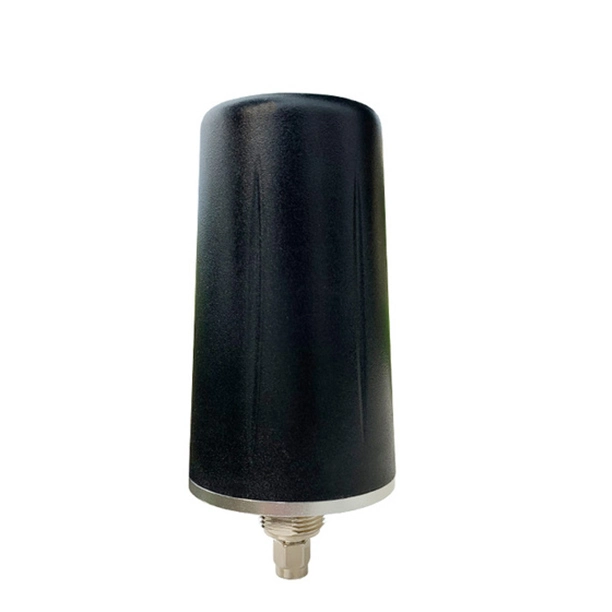

This is a 2.4/5.8G Wi-Fi terminal mount antenna with a SMA(M) connector.
