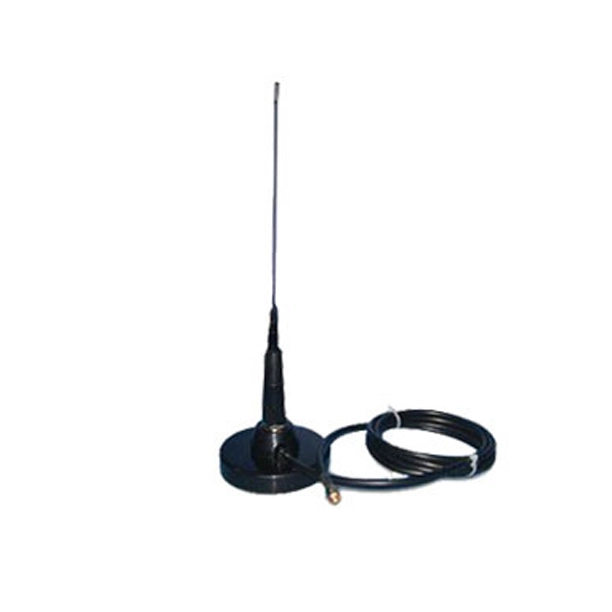

This high quality 5dBi digital DVB-T TV HDTV antenna can enhance the digital/analogue signal strength and signal quality. It provide extra clear view from your PC/Laptop and the magnetic based mounting make it be placed much easier. The antenna can be fixed on all even surfaces by using the magnetic. The antenna has high gain, wide frequency band, interference resistance.
Use a frequency: VHF174-230MHz/UHF470-862MHz Digital tv signals to enhance mobile
| Electrical | |
| Frequency Range | VHF174-230MHz/UHF470-862MHz |
| Gain | 5dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Impedance | 75Ώ |
| Maximum Input Power | 50W |
| Cable Length | 1.5m or can be customization |
| Cable type | RG174 |
| Connector | SMA Male |
| Antenna Whip Material | Steel |
| Mounting way | Magnetic Mount |
| Mechanical | |
| Dimensions | Φ87x180mm |
| Weight | 100g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
This digital DVB-T TV HDTV antenna with high quality 5dBi.
The antenna can be fixed on all even surfaces by using the magnetic.
Use a frequency: VHF174-230MHz/UHF470-862MHz Digital tv signals to enhance mobile.
