Wide-band frequency ranges enable these antennas to be utilised in worldwide deployments, providing cost-efficiencies and a simplified RFID infrastructure.
Large area coverage for high-capacity, high-throughput environments. For example use to read RAIN UHF RFID label tags in warehouses, production lines, retail stores, medical facilities Warehousing and
Distribution centers, Airports and hospitals as well Transit terminals and on Conveyer belt systems and many other applicatuions.
Our Panel Antennas are perfect for RFID systems, as well as other applications in the ISM band.
They have features that solve many of the problems normally associated with 900 MHz patch designs.
| Electrical | |
| Operating Frequency | 865-868MHz |
| Band width | 3MHz |
| Gain | 7dBi |
| F/B Ratio | ≥18dB |
| Polarization | Circular |
| Horizontal Beam width | 65° |
| Vertical Beam width | 55° |
| V.S.W.R | <1.5 |
| Lightning Protection | DC Grounded |
| Radiation | Direction |
| Maximum Input Power | 100w |
| Impedance | 50Ω |
| Connector | N Female |
| Cable Type | RG58U |
| Cable Length | 30cm |
| Mount way | Pole mount |
| Antenna Radome Material | ABS |
| Diameter of Installation Pole | Ø30-Ø50mm |
| Mechanical | |
| Dimensions | 207x180x45mm |
| Weight | 500g |
| Rated wind velocity(m/s) | 60m/s |
| Operating Temperature | -40℃ to+80℃ |
| RoHS Compliant | YES |

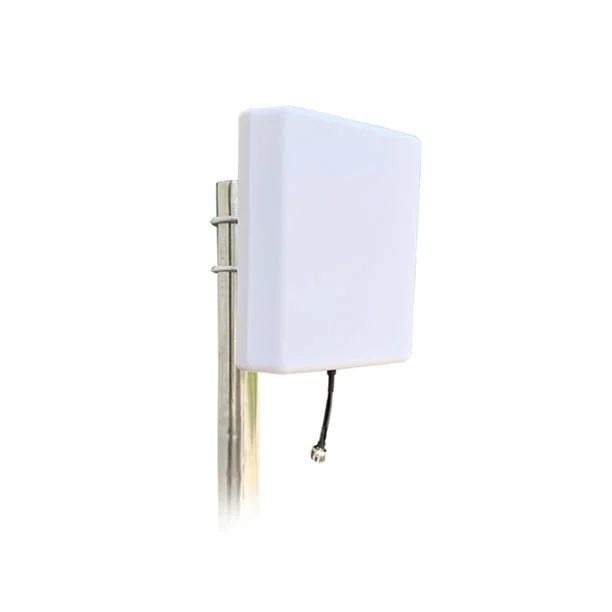

The antenna has the N type Female connectors and is constructed of strong ABS plastic radome with an aluminum backplate.
Solid construction, light weight, and waterproof for long life in the harshest environments.
The electromagnetic wave propagates in two planes creating a circular effect (like a corkscrew) making one complete revolution in a single wavelength time frame.
