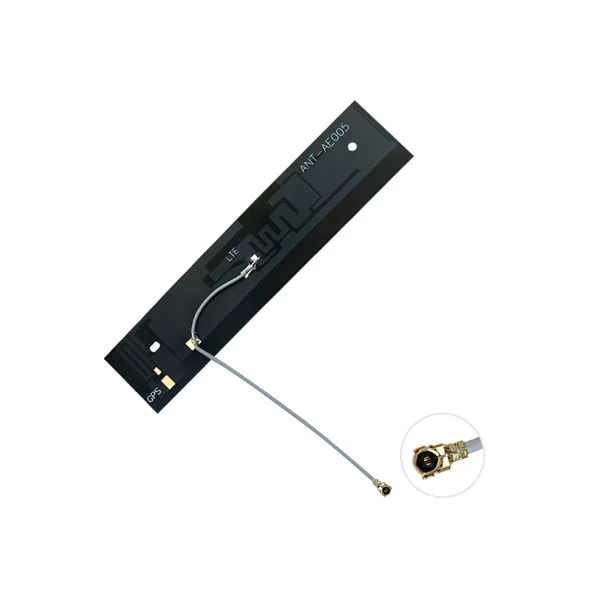

FPC Flexible antennas excel in wideband cellular 2G/3G/4G for Cellular IoT (LTE-M/Cat-M1, NB-IoT) applications, with product specialization in Low-power wide-area (LPWA) applications such as LoRaWAN® and Sigfox®, GNSS/Navigation, and WiFi/WLAN and Bluetooth®.
FPC antennas provide a ground plane independent dipole embedded antenna solution comparable in performance to an external antenna. The FPC series' flexibility and adhesive backing makes it easy to mount in unique and custom enclosures, while enabling an environmentally sealed enclosure and protection from tampering or accidental antenna damage.
Connection is made to the radio via a 100 mm long, 1.13 mm coaxial cable terminated in an MHF1/U.FL compatible plug connector.
Compact, low-profile 0.2 mm height MHF/U.FL compatible plug (female socket) on 100 mm of 1.13 mm coaxial cable.Flexible to fit in challenging enclosures
Adhesive backing permanently adheres to nonmetal enclosures using 3M adhesive
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 3dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Cable Type | 1.13cable |
| Cable Length | 10cm |
| Connector | IPEX |
| Antenna Radome Material | FPC |
| Mechanical | |
| Dimensions | 120x27x0.1mm |
| Weight | ≤10g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
This antenna AC-Q7027N27 achieves the required signal to noise ratio and throughput required to solve different challenges.
Used to transmit and receive electromagnetic wave in Wireless deverice with stable signal and low loss.
4G/LTE Antenna,male,IPEX,straight,standard,Threaded, 3dBi,698-960/1710-2700MHz,WiFi/WLAN, Bluetooth, Mobile phone (2G/3G/GSM), 4G/LTE network.
