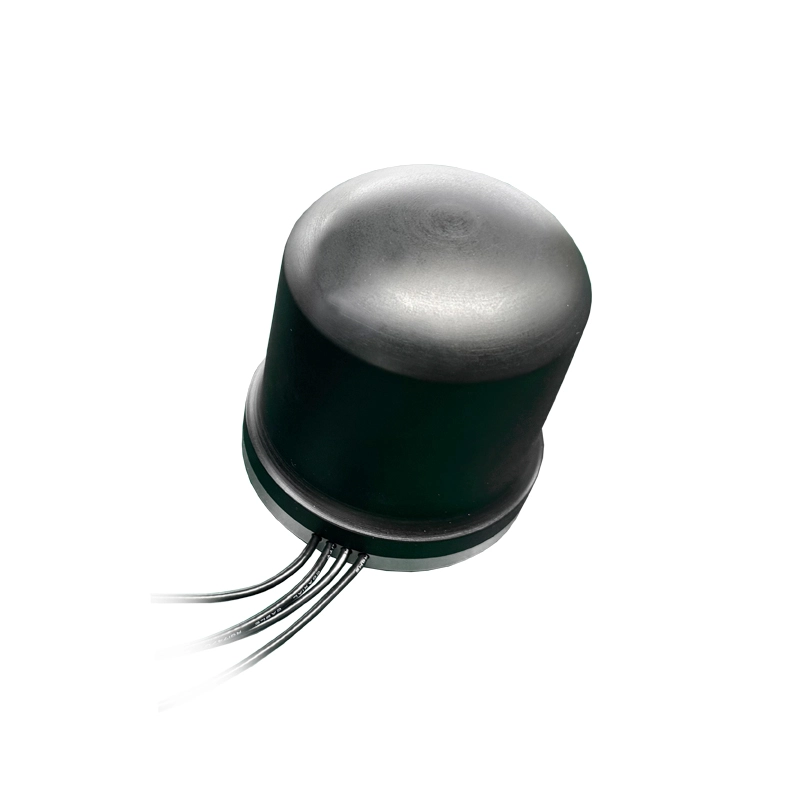

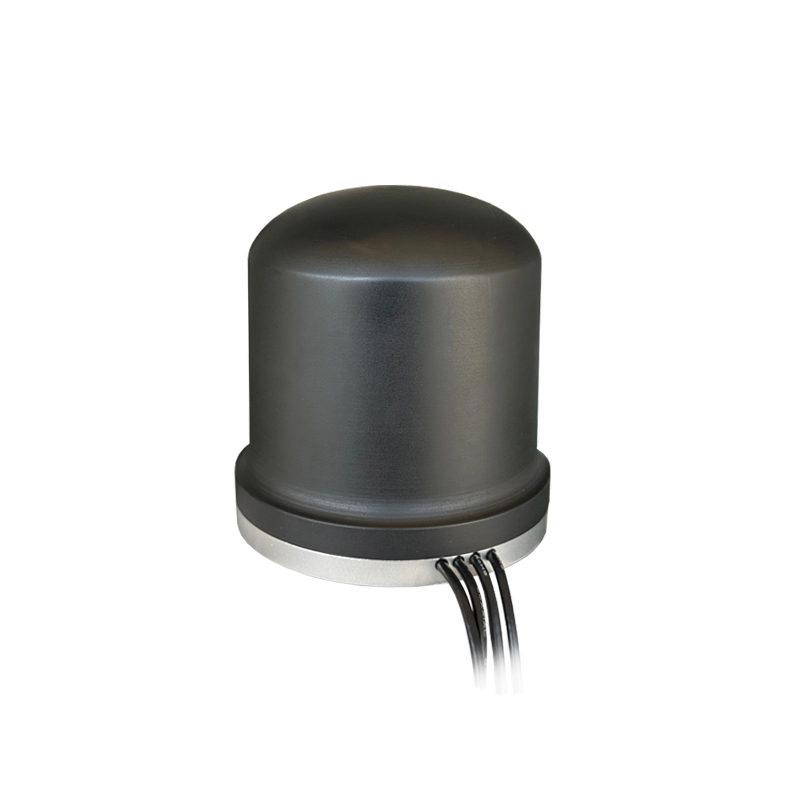

4in1 combination antenna is designed for IoT Gateway and Router devices with multiple wireless technologies.This antenna delivers powerful MIMO antenna technology for LTE and Sub-6GHz 5G bands covering 600MHz – 6GHz. Mobile antenna offers superior performance in a sleek, low-profile design all-in-one,ensuring easy and reliable connectivity,even on the edge of coverage.

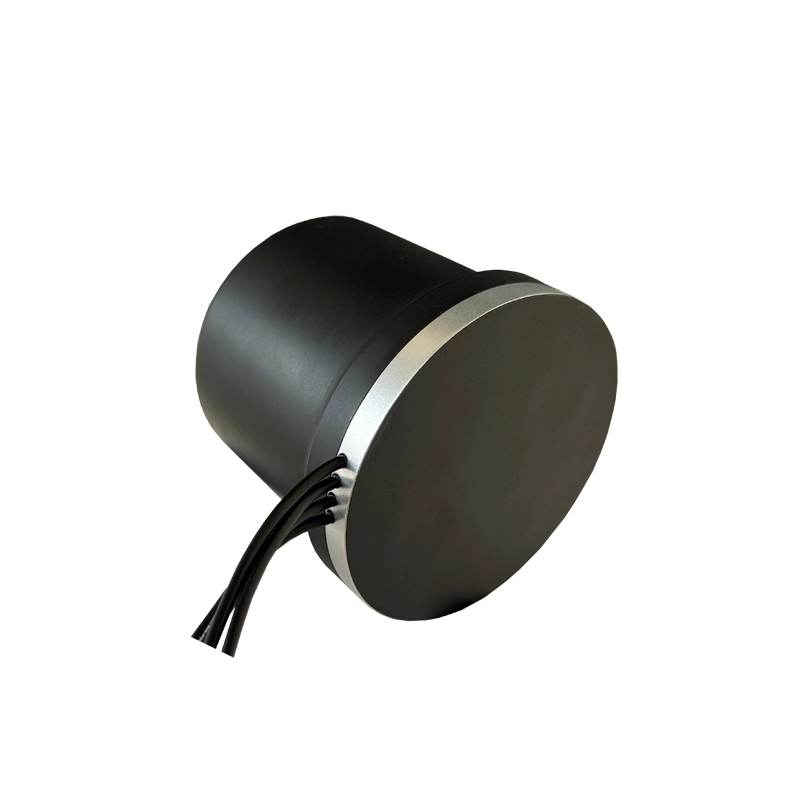

Magnetic Mount is ideal for metal roofs, using strong neodymium magnets for a quick,secure,tool-free setup.The Adhesive Mount provides a durable, one-time-use installation for non-metal surfaces.
| Electrical | ||
| 5GLTE Part: | Frequency range | 617-960/1427-2690/3300-5000/ 5150-6000MHzX4 |
| V.S.W.R | 617-960<2.5;1427-6000<1.5 | |
| Gain | 3/5dBi | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| Mechanical | ||
| Housing | Black | |

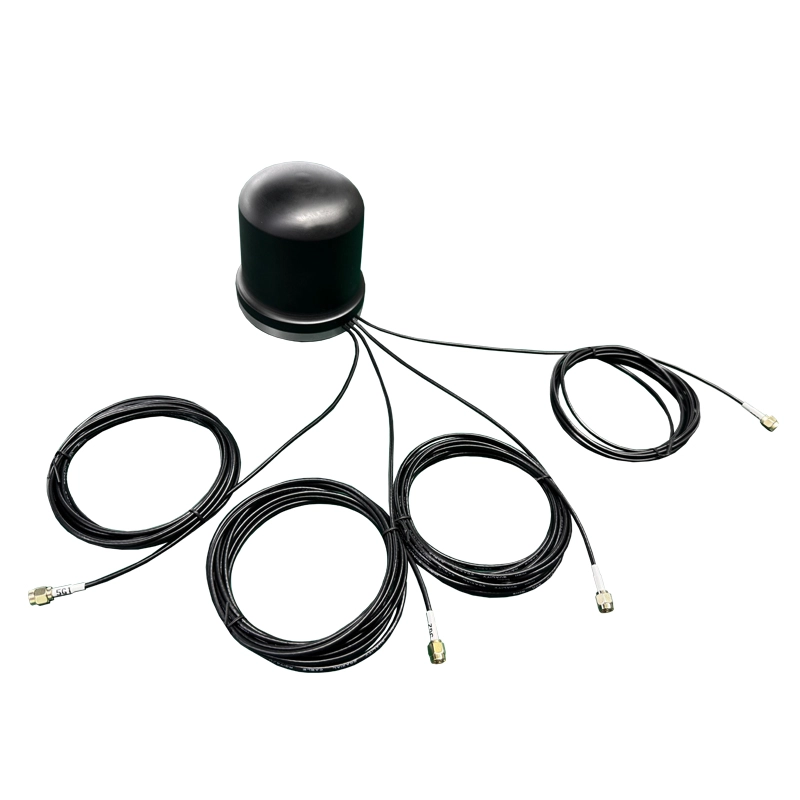

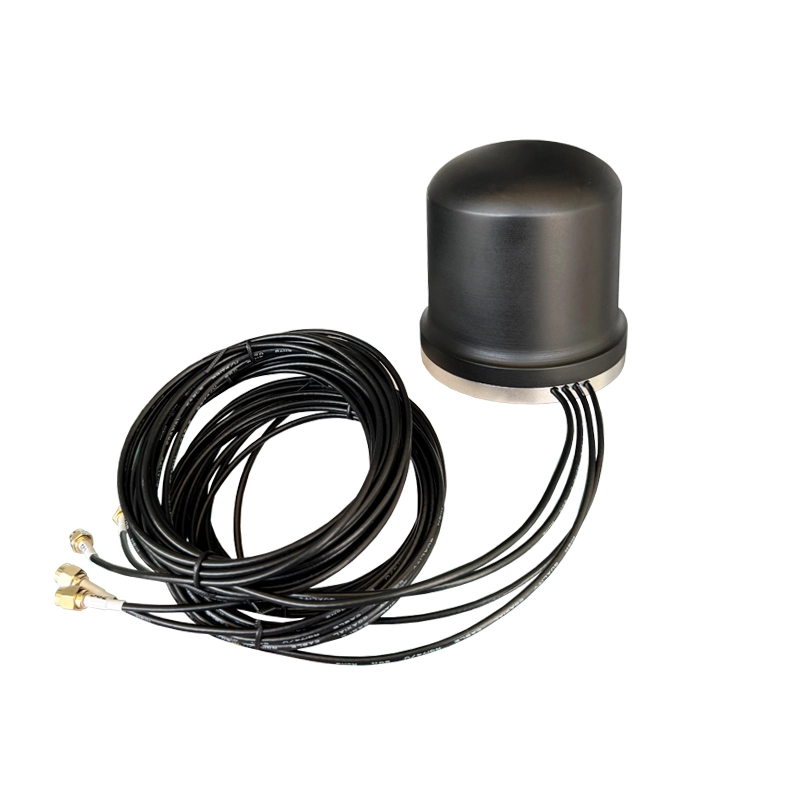

| Cable | 4xRG174 | |
| Length | 4x3/5M or can be customization | |

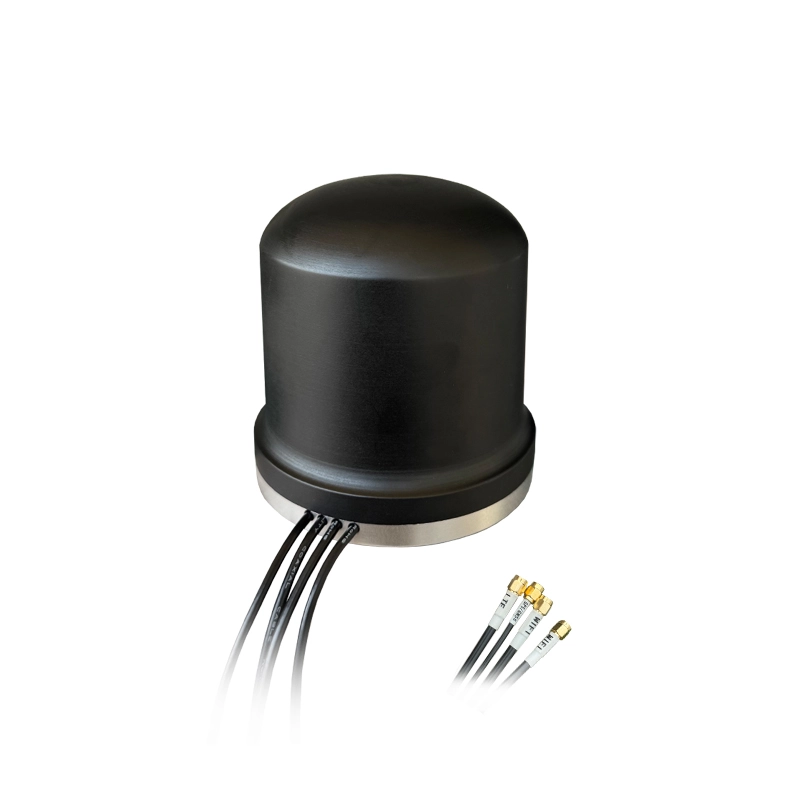

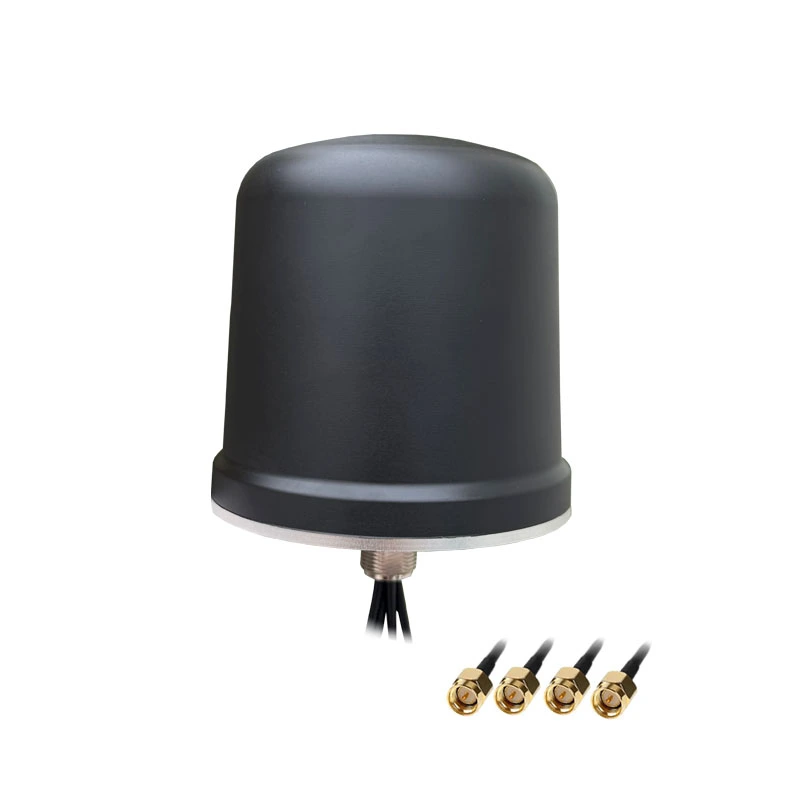

| Connector | 4xSMA Male or can be customization | |
| Environmental | ||
| Working Temp | -40℃~+85℃ | |
| Humidity | 95%~100%RH | |
| Waterproof | IP67 | |
| Antenna Radome Material | ABS | |
| Mounting way | Magnetic | |
| Antenna Dimension | Φ96x102mm | |
| Weight | 400g | |
| RoHS Compliant | YES |
Robust and weather resistant antenna with an IP69K rating
Ideal for transportation and marine implementation
Multi mounting options for easy installation
