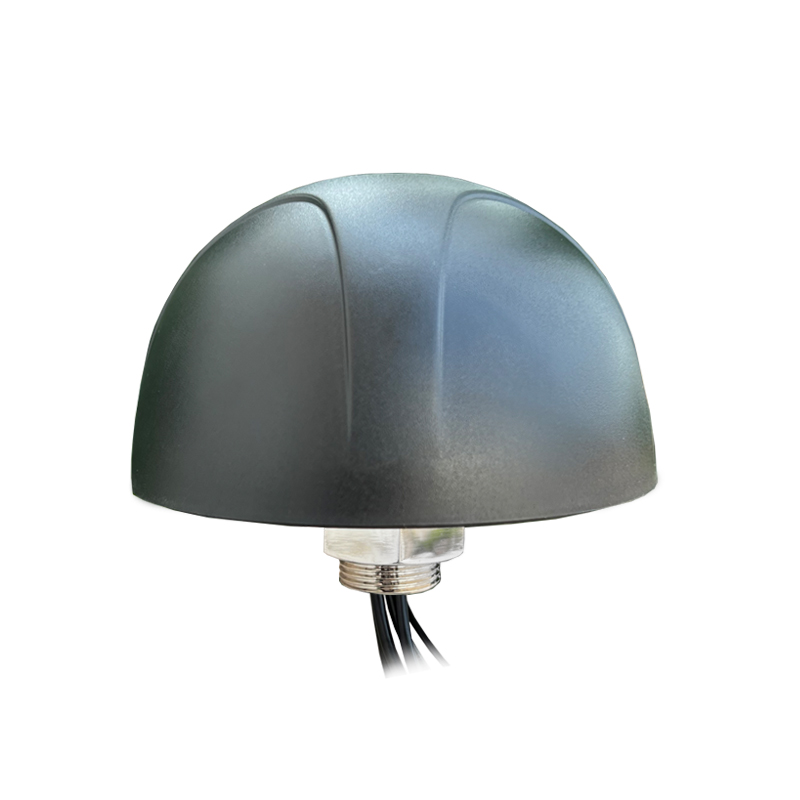

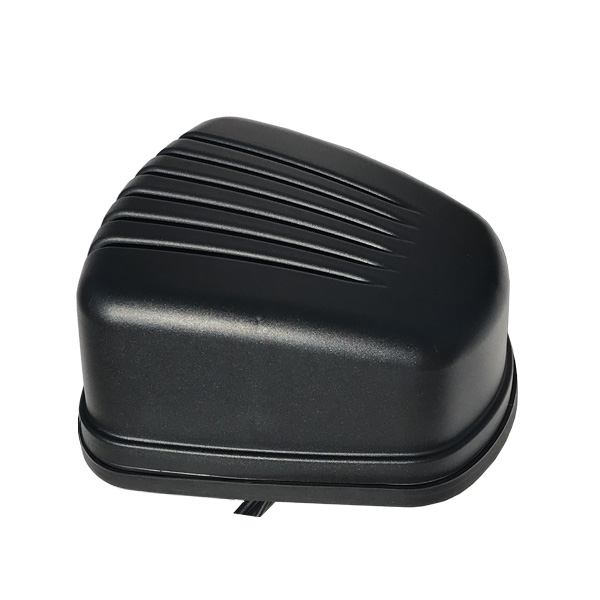

The antenna is a six port antenna with three elements designed to cover the 698-960 and 1710-3800 MHz cellular bands, two elements designed to cover the 2.4-2.5 and 4.9-5.85 GHz WLAN bands and one GPS element.
The antenna can be mounted on the roof of a vehicle or fixed structure.
The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.
This antenna is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.
The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance.
The cables are low loss allowing for lengths of up to 10 meters, critical for buses, trains and other commercial transport applications.
Customized cables and connector version available.
| Electrical | ||
| GPS/GLONASS Part: | Dielectric Antenna | |
| Frequency Range | 1575.42MHz±3 MHz/1602-1610MHz | |
| Polarization Type | RHCP | |
| Gain | 5dBi | |
| V.S.W.R | <2.0 | |
| Impedance | 50Ώ | |
| LNA | ||
| LNA Gain | 28±2dB Typical | |
| Noise Figure | 1.5dB | |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
| V.S.W.R | ＜2.0 | |
| Voltage | 2.7/3.0/3.3/5.0/3.0 to 5.0 etc. | |
| Current Consumption(mA) | 11 Max | |
| Impedance | 50Ώ | |
| DC current | 5-15mA | |
| WIFI Part: | Frequency range | 2x2400-2500MHz, 4900-5850MHz |
| V.S.W.R | ＜2.0 | |
| Gain | 6/8dBi | |
| Polarization | Linear | |
| Impendance | 50Ω | |
| LTE Part: | Frequency range | 3x698-960MHz, 1710-2170MHz, 2300-2700MHz, 2900-3800MHz |
| V.S.W.R | 3.0Max | |
| Gain | 3/5/6/7dBi | |
| Polarization | Vertical | |
| Impendance | 50Ω | |
| Mechanical | ||
| Housing | Black | |
| Cable | 6xRG174 | |
| Length | 6x3/5M or can be customization | |
| Connector | 6xSMA(M) standard, fully customizable | |
| Environmental | ||
| Operation Temperature | -40℃~+85℃ | |
| Humidity | 65%-95%RH | |
| Waterproof | IP67 | |
| Antenna Radome Material | ABS | |
| Mount way | Screw | |
| Antenna Dimension | Ф143.5×80mm | |
| Weight | 1.2KG | |
| RoHS Compliant | YES | |
